Instabilities in single RF systems
Imports
import numpy as np
import matplotlib.pyplot as plt
from mbtrack2 import CavityResonator
from albums import scan_MC_psi_I0
from albums import SystemState
from albums import EquilibriumOptions, TheoryOptions
from albums import (Flow, AlvesEquilibrium, ZeroFrequency, RobinsonCoupling,
HOMCoupledBunch, PTBLHe)
from albums import DEFAULT_FLOWS
Ring and cavity setup
from mbtrack2 import Synchrotron, Electron
from mbtrack2 import Optics
def SOLEIL_II(V_RF=1.7e6):
"""
SOLEIL II lattice v2366 w/ RF parameters from November 2023 RF budget.
Parameters
----------
V_RF : float, optional
Total RF voltage in [V].
The default is 1.7e6.
Returns
-------
ring : Synchrotron object
TDR lattice v2366_v3.
"""
L = 353.97
E0 = 2.75e9
particle = Electron()
ac = 1.05751e-04
tune = np.array([54.2, 18.3])
chro = np.array([1.6, 1.6])
beta = np.array([3.288, 4.003])
alpha = np.array([0, 0])
dispersion = np.array([0, 0, 0, 0])
h = 416
particle = Electron()
mcf_order = np.array([-0.00192226, 0.00061511, 0.00010695])
U0 = 469e3
tau = np.array([7.64e-3, 13.83e-3, 11.64e-3])
sigma_delta = 9.063e-4
emit = np.array([83.7e-12, 83.7e-12*0.01])
optics = Optics(local_beta=beta, local_alpha=alpha,
local_dispersion=dispersion)
ring = Synchrotron(h, optics, particle, L=L, E0=E0, ac=ac, U0=U0, tau=tau,
emit=emit, tune=tune, sigma_delta=sigma_delta, chro=chro,
mcf_order=mcf_order)
tuneS = ring.synchrotron_tune(V_RF)
ring.sigma_0 = (ring.sigma_delta * np.abs(ring.eta())
/ (tuneS * 2 * np.pi * ring. f0))
ring.get_longitudinal_twiss(V_RF)
return ring
ring = SOLEIL_II(V_RF=1.7e6)
I0 = 1.1
MC = CavityResonator(ring, m=1, Rs=5e6, Q=35.7e3, QL=6e3, detune=1e6, Ncav=4)
MC.Vc = 1.7e6
MC.theta = np.arccos(ring.U0/MC.Vc)
MC.set_optimal_detune(I0)
MC.set_generator(I0)
# HC is there just to be able to use scan functions but with RS=1ohm does nothing
HC = CavityResonator(ring, m=4, Rs=1, Q=31e3, QL=31e3, detune=1e6, Ncav=2)
HC.Vg = 0
HC.theta_g = 0
Main cavity tuning vs beam current scan
In the case of a single RF system, the positive tuning side is Robinson unstable (AC Robinson) while for high beam current the negative tuning side is succeptible to zero-frequency instability (DC Robinson or equilibirum phase instability).
Case with synchrotron longitudinal damping
psi_MC_vals = np.linspace(-80, 80, 50)
I0_vals = np.linspace(1e-3, 1.5, 50)
eq_opts = EquilibriumOptions(auto_set_MC_theta=False,
optimal_tunning=False)
result = scan_MC_psi_I0(
SystemState(ring, [MC, HC]),
psi_MC_vals,
I0_vals,
flow=DEFAULT_FLOWS["Alves"],
eq_opts=eq_opts)

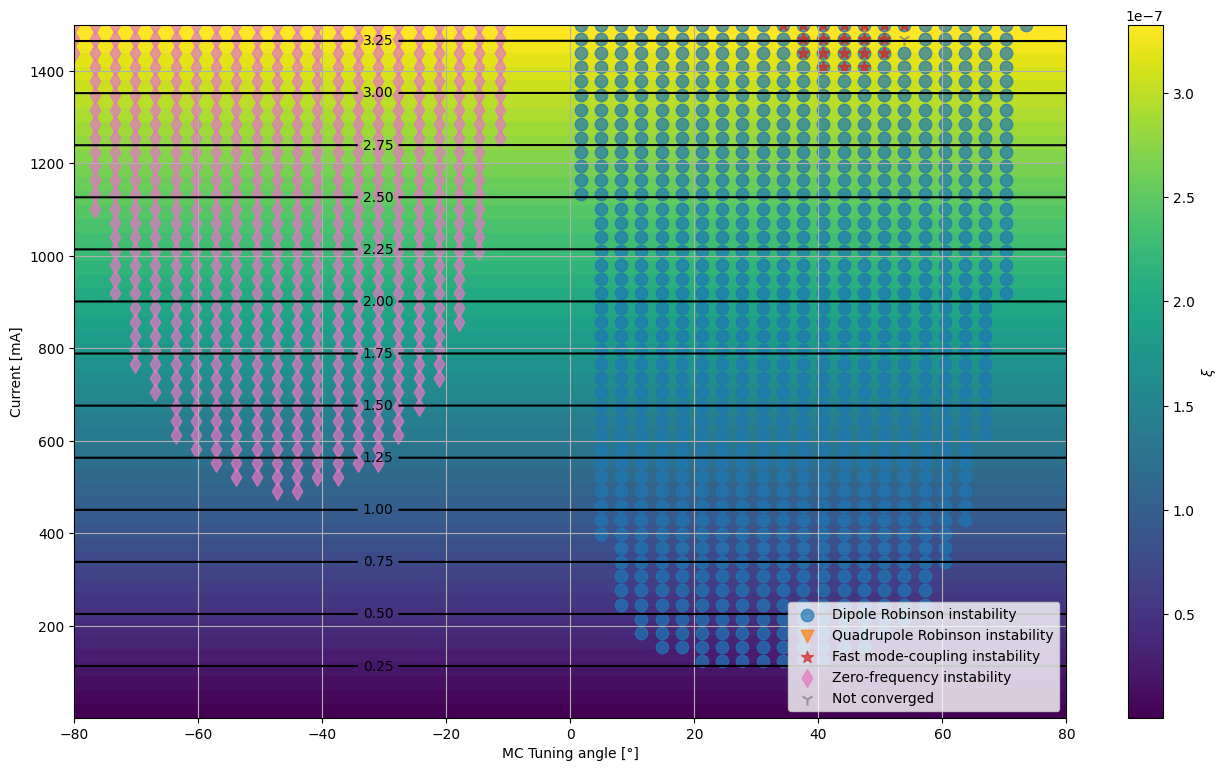

result.plot("xi")
scan: 0%| | 0/2500 [00:00<?, ?it/s]
scan: 0%| | 1/2500 [00:00<30:20, 1.37it/s]
scan: 0%| | 2/2500 [00:01<19:11, 2.17it/s]
scan: 0%| | 4/2500 [00:01<10:23, 4.00it/s]
scan: 0%| | 7/2500 [00:01<05:18, 7.83it/s]
scan: 0%| | 10/2500 [00:01<03:35, 11.54it/s]
scan: 0%| | 12/2500 [00:01<03:11, 12.99it/s]
scan: 1%| | 15/2500 [00:01<02:33, 16.20it/s]
scan: 1%| | 18/2500 [00:01<02:11, 18.91it/s]
scan: 1%| | 21/2500 [00:01<01:59, 20.78it/s]
scan: 1%| | 24/2500 [00:02<04:45, 8.67it/s]
scan: 1%| | 27/2500 [00:02<03:48, 10.84it/s]
scan: 1%| | 29/2500 [00:03<04:11, 9.83it/s]
scan: 1%| | 31/2500 [00:03<03:40, 11.21it/s]
scan: 1%|▏ | 33/2500 [00:03<04:05, 10.04it/s]
scan: 1%|▏ | 35/2500 [00:03<05:55, 6.93it/s]
scan: 2%|▏ | 38/2500 [00:04<04:21, 9.40it/s]
scan: 2%|▏ | 41/2500 [00:04<03:25, 11.98it/s]
scan: 2%|▏ | 44/2500 [00:04<02:49, 14.47it/s]
scan: 2%|▏ | 47/2500 [00:04<02:28, 16.57it/s]
scan: 2%|▏ | 50/2500 [00:04<03:38, 11.19it/s]
scan: 2%|▏ | 52/2500 [00:05<03:53, 10.47it/s]
scan: 2%|▏ | 54/2500 [00:05<03:44, 10.89it/s]
scan: 2%|▏ | 58/2500 [00:05<02:44, 14.82it/s]
scan: 2%|▏ | 62/2500 [00:05<02:12, 18.36it/s]
scan: 3%|▎ | 65/2500 [00:05<01:59, 20.40it/s]
scan: 3%|▎ | 68/2500 [00:05<01:52, 21.63it/s]
scan: 3%|▎ | 71/2500 [00:05<01:46, 22.80it/s]
scan: 3%|▎ | 74/2500 [00:06<01:39, 24.34it/s]
scan: 3%|▎ | 77/2500 [00:06<01:34, 25.67it/s]
scan: 3%|▎ | 80/2500 [00:06<01:30, 26.67it/s]
scan: 3%|▎ | 84/2500 [00:06<01:26, 27.84it/s]
scan: 3%|▎ | 87/2500 [00:06<01:31, 26.30it/s]
scan: 4%|▎ | 90/2500 [00:06<01:45, 22.82it/s]
scan: 4%|▎ | 93/2500 [00:06<01:41, 23.75it/s]
scan: 4%|▍ | 96/2500 [00:06<01:58, 20.34it/s]
scan: 4%|▍ | 99/2500 [00:07<01:58, 20.26it/s]
scan: 4%|▍ | 102/2500 [00:07<01:49, 21.84it/s]
scan: 4%|▍ | 106/2500 [00:07<01:36, 24.82it/s]
scan: 4%|▍ | 110/2500 [00:07<01:28, 27.01it/s]
scan: 5%|▍ | 114/2500 [00:07<01:22, 28.76it/s]
scan: 5%|▍ | 118/2500 [00:07<01:20, 29.75it/s]
scan: 5%|▍ | 122/2500 [00:07<01:19, 29.88it/s]
scan: 5%|▌ | 126/2500 [00:07<01:17, 30.49it/s]
scan: 5%|▌ | 130/2500 [00:08<01:23, 28.40it/s]
scan: 5%|▌ | 133/2500 [00:08<01:22, 28.77it/s]
scan: 5%|▌ | 136/2500 [00:08<01:21, 29.04it/s]
scan: 6%|▌ | 140/2500 [00:08<01:19, 29.51it/s]
scan: 6%|▌ | 143/2500 [00:08<01:20, 29.43it/s]
scan: 6%|▌ | 146/2500 [00:08<01:21, 29.03it/s]
scan: 6%|▌ | 149/2500 [00:08<01:20, 29.27it/s]
scan: 6%|▌ | 153/2500 [00:08<01:25, 27.33it/s]
scan: 6%|▌ | 156/2500 [00:09<01:36, 24.23it/s]
scan: 6%|▋ | 159/2500 [00:09<01:34, 24.76it/s]
scan: 6%|▋ | 162/2500 [00:09<01:29, 26.00it/s]
scan: 7%|▋ | 166/2500 [00:09<01:23, 27.86it/s]
scan: 7%|▋ | 170/2500 [00:09<01:19, 29.14it/s]
scan: 7%|▋ | 174/2500 [00:09<01:17, 30.06it/s]
scan: 7%|▋ | 178/2500 [00:09<01:17, 29.82it/s]
scan: 7%|▋ | 181/2500 [00:09<01:18, 29.44it/s]
scan: 7%|▋ | 184/2500 [00:10<01:19, 29.21it/s]
scan: 7%|▋ | 187/2500 [00:10<01:35, 24.27it/s]
scan: 8%|▊ | 190/2500 [00:10<01:30, 25.65it/s]
scan: 8%|▊ | 193/2500 [00:10<01:27, 26.49it/s]
scan: 8%|▊ | 196/2500 [00:10<01:24, 27.24it/s]
scan: 8%|▊ | 199/2500 [00:10<01:22, 27.81it/s]
scan: 8%|▊ | 203/2500 [00:10<01:18, 29.17it/s]
scan: 8%|▊ | 207/2500 [00:10<01:16, 30.06it/s]
scan: 8%|▊ | 211/2500 [00:11<01:14, 30.83it/s]
scan: 9%|▊ | 215/2500 [00:11<01:13, 31.23it/s]
scan: 9%|▉ | 219/2500 [00:11<01:17, 29.52it/s]
scan: 9%|▉ | 223/2500 [00:11<01:15, 30.00it/s]
scan: 9%|▉ | 227/2500 [00:11<01:15, 30.18it/s]
scan: 9%|▉ | 231/2500 [00:11<01:15, 30.21it/s]
scan: 9%|▉ | 235/2500 [00:11<01:15, 29.81it/s]
scan: 10%|▉ | 238/2500 [00:11<01:18, 28.74it/s]
scan: 10%|▉ | 241/2500 [00:12<01:20, 28.21it/s]
scan: 10%|▉ | 244/2500 [00:12<01:19, 28.31it/s]
scan: 10%|▉ | 247/2500 [00:12<01:18, 28.59it/s]
scan: 10%|█ | 250/2500 [00:12<01:25, 26.20it/s]
scan: 10%|█ | 254/2500 [00:12<01:19, 28.28it/s]
scan: 10%|█ | 258/2500 [00:12<01:15, 29.60it/s]
scan: 10%|█ | 262/2500 [00:12<01:14, 30.22it/s]
scan: 11%|█ | 266/2500 [00:12<01:30, 24.68it/s]
scan: 11%|█ | 269/2500 [00:13<01:32, 24.02it/s]
scan: 11%|█ | 273/2500 [00:13<01:26, 25.87it/s]
scan: 11%|█ | 276/2500 [00:13<01:29, 24.90it/s]
scan: 11%|█ | 279/2500 [00:13<01:34, 23.60it/s]
scan: 11%|█▏ | 282/2500 [00:13<01:30, 24.43it/s]
scan: 11%|█▏ | 285/2500 [00:13<01:26, 25.72it/s]
scan: 12%|█▏ | 289/2500 [00:13<01:21, 27.25it/s]
scan: 12%|█▏ | 292/2500 [00:13<01:20, 27.42it/s]
scan: 12%|█▏ | 296/2500 [00:14<01:19, 27.69it/s]
scan: 12%|█▏ | 299/2500 [00:14<01:17, 28.23it/s]
scan: 12%|█▏ | 303/2500 [00:14<01:14, 29.35it/s]
scan: 12%|█▏ | 307/2500 [00:14<01:14, 29.62it/s]
scan: 12%|█▏ | 311/2500 [00:14<01:12, 30.07it/s]
scan: 13%|█▎ | 315/2500 [00:14<01:11, 30.41it/s]
scan: 13%|█▎ | 319/2500 [00:14<01:11, 30.31it/s]
scan: 13%|█▎ | 323/2500 [00:15<01:12, 29.88it/s]
scan: 13%|█▎ | 326/2500 [00:15<01:18, 27.54it/s]
scan: 13%|█▎ | 329/2500 [00:15<01:53, 19.06it/s]
scan: 13%|█▎ | 332/2500 [00:15<01:46, 20.39it/s]
scan: 13%|█▎ | 335/2500 [00:15<01:37, 22.20it/s]
scan: 14%|█▎ | 338/2500 [00:15<01:30, 23.81it/s]
scan: 14%|█▎ | 342/2500 [00:15<01:24, 25.64it/s]
scan: 14%|█▍ | 345/2500 [00:15<01:21, 26.56it/s]
scan: 14%|█▍ | 348/2500 [00:16<01:19, 27.15it/s]
scan: 14%|█▍ | 351/2500 [00:16<01:17, 27.69it/s]
scan: 14%|█▍ | 355/2500 [00:16<01:13, 29.15it/s]
scan: 14%|█▍ | 359/2500 [00:16<01:11, 30.10it/s]
scan: 15%|█▍ | 363/2500 [00:16<01:09, 30.87it/s]
scan: 15%|█▍ | 367/2500 [00:16<01:09, 30.73it/s]
scan: 15%|█▍ | 371/2500 [00:16<01:09, 30.57it/s]
scan: 15%|█▌ | 375/2500 [00:16<01:10, 30.22it/s]
scan: 15%|█▌ | 379/2500 [00:17<01:10, 30.02it/s]
scan: 15%|█▌ | 383/2500 [00:18<03:47, 9.29it/s]
scan: 15%|█▌ | 386/2500 [00:18<03:12, 10.95it/s]
scan: 16%|█▌ | 389/2500 [00:18<03:06, 11.31it/s]
scan: 16%|█▌ | 392/2500 [00:18<02:44, 12.78it/s]
scan: 16%|█▌ | 395/2500 [00:18<02:23, 14.64it/s]
scan: 16%|█▌ | 398/2500 [00:18<02:04, 16.83it/s]
scan: 16%|█▌ | 402/2500 [00:19<01:44, 20.10it/s]
scan: 16%|█▌ | 406/2500 [00:19<01:31, 22.81it/s]
scan: 16%|█▋ | 410/2500 [00:19<01:22, 25.24it/s]
scan: 17%|█▋ | 413/2500 [00:20<03:12, 10.82it/s]
scan: 17%|█▋ | 417/2500 [00:20<02:31, 13.76it/s]
scan: 17%|█▋ | 421/2500 [00:20<02:03, 16.78it/s]
scan: 17%|█▋ | 425/2500 [00:20<01:46, 19.56it/s]
scan: 17%|█▋ | 429/2500 [00:20<01:34, 22.01it/s]
scan: 17%|█▋ | 432/2500 [00:20<01:28, 23.35it/s]
scan: 17%|█▋ | 435/2500 [00:20<01:25, 24.08it/s]
scan: 18%|█▊ | 438/2500 [00:20<01:25, 23.99it/s]
scan: 18%|█▊ | 441/2500 [00:21<01:22, 25.11it/s]
scan: 18%|█▊ | 444/2500 [00:21<01:18, 26.12it/s]
scan: 18%|█▊ | 447/2500 [00:21<01:15, 27.03it/s]
scan: 18%|█▊ | 451/2500 [00:21<01:11, 28.49it/s]
scan: 18%|█▊ | 455/2500 [00:21<01:08, 29.71it/s]
scan: 18%|█▊ | 459/2500 [00:21<01:06, 30.64it/s]
scan: 19%|█▊ | 463/2500 [00:21<01:05, 30.94it/s]
scan: 19%|█▊ | 467/2500 [00:21<01:04, 31.39it/s]
scan: 19%|█▉ | 471/2500 [00:22<01:08, 29.50it/s]
scan: 19%|█▉ | 474/2500 [00:22<01:09, 29.33it/s]
scan: 19%|█▉ | 477/2500 [00:22<01:08, 29.48it/s]
scan: 19%|█▉ | 481/2500 [00:22<01:07, 30.07it/s]
scan: 19%|█▉ | 485/2500 [00:22<01:06, 30.38it/s]
scan: 20%|█▉ | 489/2500 [00:22<01:06, 30.12it/s]
scan: 20%|█▉ | 493/2500 [00:22<01:06, 30.24it/s]
scan: 20%|█▉ | 497/2500 [00:22<01:06, 30.15it/s]
scan: 20%|██ | 501/2500 [00:23<01:08, 29.34it/s]
scan: 20%|██ | 504/2500 [00:23<01:10, 28.29it/s]
scan: 20%|██ | 508/2500 [00:23<02:44, 12.13it/s]
scan: 20%|██ | 511/2500 [00:23<02:19, 14.23it/s]
scan: 21%|██ | 515/2500 [00:24<01:54, 17.33it/s]
scan: 21%|██ | 518/2500 [00:24<01:45, 18.73it/s]
scan: 21%|██ | 522/2500 [00:24<01:31, 21.52it/s]
scan: 21%|██ | 525/2500 [00:24<01:25, 23.19it/s]
scan: 21%|██ | 529/2500 [00:24<01:18, 25.24it/s]
scan: 21%|██▏ | 533/2500 [00:24<01:14, 26.33it/s]
scan: 21%|██▏ | 536/2500 [00:24<01:12, 26.96it/s]
scan: 22%|██▏ | 539/2500 [00:24<01:12, 26.88it/s]
scan: 22%|██▏ | 542/2500 [00:25<01:10, 27.58it/s]
scan: 22%|██▏ | 545/2500 [00:25<01:10, 27.86it/s]
scan: 22%|██▏ | 548/2500 [00:25<01:13, 26.40it/s]
scan: 22%|██▏ | 552/2500 [00:25<01:09, 27.89it/s]
scan: 22%|██▏ | 556/2500 [00:25<01:06, 29.20it/s]
scan: 22%|██▏ | 560/2500 [00:25<01:04, 30.29it/s]
scan: 23%|██▎ | 564/2500 [00:25<01:03, 30.56it/s]
scan: 23%|██▎ | 568/2500 [00:25<01:05, 29.53it/s]
scan: 23%|██▎ | 571/2500 [00:26<02:29, 12.92it/s]
scan: 23%|██▎ | 575/2500 [00:26<02:01, 15.86it/s]
scan: 23%|██▎ | 578/2500 [00:26<01:46, 18.02it/s]
scan: 23%|██▎ | 582/2500 [00:26<01:33, 20.60it/s]
scan: 23%|██▎ | 585/2500 [00:27<01:26, 22.24it/s]
scan: 24%|██▎ | 588/2500 [00:27<01:21, 23.51it/s]
scan: 24%|██▎ | 591/2500 [00:27<01:21, 23.38it/s]
scan: 24%|██▍ | 594/2500 [00:27<01:25, 22.36it/s]
scan: 24%|██▍ | 597/2500 [00:27<01:47, 17.76it/s]
scan: 24%|██▍ | 600/2500 [00:27<01:38, 19.19it/s]
scan: 24%|██▍ | 603/2500 [00:27<01:35, 19.92it/s]
scan: 24%|██▍ | 607/2500 [00:28<01:23, 22.79it/s]
scan: 24%|██▍ | 610/2500 [00:28<01:18, 24.21it/s]
scan: 25%|██▍ | 613/2500 [00:28<01:13, 25.51it/s]
scan: 25%|██▍ | 616/2500 [00:28<01:13, 25.78it/s]
scan: 25%|██▍ | 619/2500 [00:28<01:14, 25.30it/s]
scan: 25%|██▍ | 622/2500 [00:28<01:11, 26.38it/s]
scan: 25%|██▌ | 625/2500 [00:28<01:08, 27.35it/s]
scan: 25%|██▌ | 628/2500 [00:28<01:09, 27.06it/s]
scan: 25%|██▌ | 631/2500 [00:28<01:08, 27.37it/s]
scan: 25%|██▌ | 634/2500 [00:29<01:11, 26.17it/s]
scan: 25%|██▌ | 637/2500 [00:29<01:13, 25.50it/s]
scan: 26%|██▌ | 640/2500 [00:29<01:10, 26.39it/s]
scan: 26%|██▌ | 643/2500 [00:29<01:08, 27.15it/s]
scan: 26%|██▌ | 646/2500 [00:29<01:14, 24.84it/s]
scan: 26%|██▌ | 649/2500 [00:29<01:11, 25.84it/s]
scan: 26%|██▌ | 652/2500 [00:29<01:08, 26.87it/s]
scan: 26%|██▌ | 656/2500 [00:29<01:04, 28.41it/s]
scan: 26%|██▋ | 660/2500 [00:30<01:03, 29.19it/s]
scan: 27%|██▋ | 663/2500 [00:30<01:03, 29.09it/s]
scan: 27%|██▋ | 666/2500 [00:30<01:03, 28.85it/s]
scan: 27%|██▋ | 669/2500 [00:30<01:04, 28.58it/s]
scan: 27%|██▋ | 672/2500 [00:30<01:03, 28.77it/s]
scan: 27%|██▋ | 675/2500 [00:30<01:03, 28.79it/s]
scan: 27%|██▋ | 678/2500 [00:30<01:07, 27.10it/s]
scan: 27%|██▋ | 682/2500 [00:30<01:04, 28.18it/s]
scan: 27%|██▋ | 685/2500 [00:30<01:04, 28.30it/s]
scan: 28%|██▊ | 688/2500 [00:31<01:06, 27.33it/s]
scan: 28%|██▊ | 691/2500 [00:31<01:07, 26.78it/s]
scan: 28%|██▊ | 694/2500 [00:31<01:07, 26.65it/s]
scan: 28%|██▊ | 697/2500 [00:31<01:07, 26.68it/s]
scan: 28%|██▊ | 700/2500 [00:31<01:07, 26.86it/s]
scan: 28%|██▊ | 704/2500 [00:31<01:04, 27.67it/s]
scan: 28%|██▊ | 707/2500 [00:31<01:10, 25.28it/s]
scan: 28%|██▊ | 711/2500 [00:31<01:06, 27.04it/s]
scan: 29%|██▊ | 715/2500 [00:32<01:02, 28.51it/s]
scan: 29%|██▊ | 718/2500 [00:32<01:02, 28.55it/s]
scan: 29%|██▉ | 721/2500 [00:32<01:25, 20.89it/s]
scan: 29%|██▉ | 724/2500 [00:32<01:21, 21.78it/s]
scan: 29%|██▉ | 727/2500 [00:32<01:15, 23.43it/s]
scan: 29%|██▉ | 731/2500 [00:32<01:12, 24.43it/s]
scan: 29%|██▉ | 734/2500 [00:32<01:13, 24.08it/s]
scan: 29%|██▉ | 737/2500 [00:32<01:10, 25.04it/s]
scan: 30%|██▉ | 740/2500 [00:33<01:07, 26.05it/s]
scan: 30%|██▉ | 743/2500 [00:33<01:06, 26.48it/s]
scan: 30%|██▉ | 746/2500 [00:33<01:06, 26.47it/s]
scan: 30%|██▉ | 749/2500 [00:33<01:07, 26.10it/s]
scan: 30%|███ | 752/2500 [00:33<01:05, 26.76it/s]
scan: 30%|███ | 755/2500 [00:33<01:03, 27.54it/s]
scan: 30%|███ | 758/2500 [00:34<01:58, 14.75it/s]
scan: 30%|███ | 761/2500 [00:34<01:48, 16.05it/s]
scan: 31%|███ | 764/2500 [00:34<01:37, 17.72it/s]
scan: 31%|███ | 767/2500 [00:34<01:30, 19.10it/s]
scan: 31%|███ | 770/2500 [00:34<01:38, 17.50it/s]
scan: 31%|███ | 773/2500 [00:34<01:27, 19.81it/s]
scan: 31%|███ | 776/2500 [00:34<01:19, 21.56it/s]
scan: 31%|███ | 779/2500 [00:35<01:18, 21.93it/s]
scan: 31%|███▏ | 782/2500 [00:35<01:16, 22.57it/s]
scan: 31%|███▏ | 785/2500 [00:35<01:16, 22.51it/s]
scan: 32%|███▏ | 788/2500 [00:35<01:13, 23.44it/s]
scan: 32%|███▏ | 791/2500 [00:35<01:10, 24.20it/s]
scan: 32%|███▏ | 794/2500 [00:35<01:08, 24.98it/s]
scan: 32%|███▏ | 797/2500 [00:35<01:08, 24.93it/s]
scan: 32%|███▏ | 800/2500 [00:35<01:06, 25.71it/s]
scan: 32%|███▏ | 803/2500 [00:36<01:23, 20.40it/s]
scan: 32%|███▏ | 807/2500 [00:36<01:12, 23.34it/s]
scan: 32%|███▏ | 811/2500 [00:36<01:06, 25.40it/s]
scan: 33%|███▎ | 814/2500 [00:36<01:03, 26.43it/s]
scan: 33%|███▎ | 817/2500 [00:36<01:02, 27.02it/s]
scan: 33%|███▎ | 821/2500 [00:36<01:00, 27.89it/s]
scan: 33%|███▎ | 824/2500 [00:36<00:59, 28.02it/s]
scan: 33%|███▎ | 827/2500 [00:36<00:58, 28.53it/s]
scan: 33%|███▎ | 830/2500 [00:36<00:58, 28.62it/s]
scan: 33%|███▎ | 833/2500 [00:37<01:08, 24.22it/s]
scan: 33%|███▎ | 836/2500 [00:37<01:05, 25.31it/s]
scan: 34%|███▎ | 839/2500 [00:37<01:04, 25.84it/s]
scan: 34%|███▎ | 842/2500 [00:37<01:02, 26.63it/s]
scan: 34%|███▍ | 845/2500 [00:37<01:01, 26.95it/s]
scan: 34%|███▍ | 848/2500 [00:37<01:03, 26.14it/s]
scan: 34%|███▍ | 851/2500 [00:37<01:05, 25.19it/s]
scan: 34%|███▍ | 854/2500 [00:37<01:02, 26.14it/s]
scan: 34%|███▍ | 857/2500 [00:38<01:02, 26.28it/s]
scan: 34%|███▍ | 860/2500 [00:38<01:03, 25.89it/s]
scan: 35%|███▍ | 863/2500 [00:38<01:04, 25.23it/s]
scan: 35%|███▍ | 866/2500 [00:38<01:01, 26.36it/s]
scan: 35%|███▍ | 870/2500 [00:38<00:58, 28.06it/s]
scan: 35%|███▍ | 873/2500 [00:38<00:57, 28.07it/s]
scan: 35%|███▌ | 876/2500 [00:38<00:58, 27.74it/s]
scan: 35%|███▌ | 879/2500 [00:38<00:57, 28.07it/s]
scan: 35%|███▌ | 882/2500 [00:38<00:58, 27.84it/s]
scan: 35%|███▌ | 885/2500 [00:39<00:58, 27.79it/s]
scan: 36%|███▌ | 888/2500 [00:39<00:57, 27.94it/s]
scan: 36%|███▌ | 891/2500 [00:39<01:02, 25.83it/s]
scan: 36%|███▌ | 894/2500 [00:39<01:02, 25.86it/s]
scan: 36%|███▌ | 897/2500 [00:39<01:00, 26.50it/s]
scan: 36%|███▌ | 900/2500 [00:39<00:59, 27.08it/s]
scan: 36%|███▌ | 904/2500 [00:39<00:56, 28.33it/s]
scan: 36%|███▋ | 908/2500 [00:39<00:54, 29.15it/s]
scan: 36%|███▋ | 911/2500 [00:39<00:54, 29.26it/s]
scan: 37%|███▋ | 914/2500 [00:40<00:54, 29.12it/s]
scan: 37%|███▋ | 918/2500 [00:40<00:53, 29.42it/s]
scan: 37%|███▋ | 921/2500 [00:40<00:55, 28.28it/s]
scan: 37%|███▋ | 924/2500 [00:40<00:55, 28.40it/s]
scan: 37%|███▋ | 927/2500 [00:40<00:55, 28.55it/s]
scan: 37%|███▋ | 930/2500 [00:40<00:56, 27.59it/s]
scan: 37%|███▋ | 933/2500 [00:40<00:56, 27.88it/s]
scan: 37%|███▋ | 936/2500 [00:40<00:55, 28.12it/s]
scan: 38%|███▊ | 939/2500 [00:40<00:56, 27.74it/s]
scan: 38%|███▊ | 942/2500 [00:41<00:55, 28.09it/s]
scan: 38%|███▊ | 945/2500 [00:41<00:55, 28.17it/s]
scan: 38%|███▊ | 948/2500 [00:41<00:56, 27.26it/s]
scan: 38%|███▊ | 951/2500 [00:42<02:42, 9.54it/s]
scan: 38%|███▊ | 954/2500 [00:42<02:10, 11.85it/s]
scan: 38%|███▊ | 957/2500 [00:42<01:47, 14.30it/s]
scan: 38%|███▊ | 960/2500 [00:42<01:33, 16.52it/s]
scan: 39%|███▊ | 963/2500 [00:42<01:33, 16.49it/s]
scan: 39%|███▊ | 966/2500 [00:42<01:21, 18.91it/s]
scan: 39%|███▉ | 970/2500 [00:42<01:11, 21.30it/s]
scan: 39%|███▉ | 973/2500 [00:42<01:08, 22.29it/s]
scan: 39%|███▉ | 976/2500 [00:43<01:07, 22.71it/s]
scan: 39%|███▉ | 979/2500 [00:43<01:05, 23.33it/s]
scan: 39%|███▉ | 982/2500 [00:43<01:04, 23.63it/s]
scan: 39%|███▉ | 985/2500 [00:43<01:04, 23.45it/s]
scan: 40%|███▉ | 988/2500 [00:43<01:07, 22.33it/s]
scan: 40%|███▉ | 991/2500 [00:43<01:03, 23.59it/s]
scan: 40%|███▉ | 994/2500 [00:43<01:01, 24.31it/s]
scan: 40%|███▉ | 997/2500 [00:43<01:00, 24.71it/s]
scan: 40%|████ | 1000/2500 [00:44<00:59, 25.24it/s]
scan: 40%|████ | 1004/2500 [00:44<00:55, 27.17it/s]
scan: 40%|████ | 1007/2500 [00:44<00:53, 27.77it/s]
scan: 40%|████ | 1010/2500 [00:44<00:52, 28.33it/s]
scan: 41%|████ | 1014/2500 [00:44<00:51, 28.96it/s]
scan: 41%|████ | 1017/2500 [00:44<01:00, 24.35it/s]
scan: 41%|████ | 1020/2500 [00:45<02:00, 12.32it/s]
scan: 41%|████ | 1023/2500 [00:45<01:40, 14.69it/s]
scan: 41%|████ | 1026/2500 [00:45<01:25, 17.17it/s]
scan: 41%|████ | 1030/2500 [00:45<01:12, 20.32it/s]
scan: 41%|████▏ | 1033/2500 [00:45<01:13, 19.95it/s]
scan: 41%|████▏ | 1036/2500 [00:45<01:09, 21.19it/s]
scan: 42%|████▏ | 1039/2500 [00:46<01:05, 22.20it/s]
scan: 42%|████▏ | 1042/2500 [00:46<01:01, 23.62it/s]
scan: 42%|████▏ | 1045/2500 [00:46<01:01, 23.76it/s]
scan: 42%|████▏ | 1048/2500 [00:46<01:01, 23.46it/s]
scan: 42%|████▏ | 1051/2500 [00:46<00:59, 24.41it/s]
scan: 42%|████▏ | 1055/2500 [00:46<00:54, 26.52it/s]
scan: 42%|████▏ | 1059/2500 [00:46<00:53, 26.91it/s]
scan: 42%|████▏ | 1062/2500 [00:46<00:53, 26.90it/s]
scan: 43%|████▎ | 1065/2500 [00:46<00:51, 27.64it/s]
scan: 43%|████▎ | 1069/2500 [00:47<00:50, 28.31it/s]
scan: 43%|████▎ | 1072/2500 [00:47<00:51, 27.86it/s]
scan: 43%|████▎ | 1075/2500 [00:47<00:53, 26.50it/s]
scan: 43%|████▎ | 1078/2500 [00:47<00:52, 27.01it/s]
scan: 43%|████▎ | 1081/2500 [00:47<00:51, 27.64it/s]
scan: 43%|████▎ | 1084/2500 [00:47<00:52, 26.81it/s]
scan: 43%|████▎ | 1087/2500 [00:47<00:53, 26.55it/s]
scan: 44%|████▎ | 1090/2500 [00:47<00:59, 23.89it/s]
scan: 44%|████▎ | 1093/2500 [00:48<01:20, 17.51it/s]
scan: 44%|████▍ | 1096/2500 [00:48<01:13, 19.04it/s]
scan: 44%|████▍ | 1099/2500 [00:48<01:12, 19.19it/s]
scan: 44%|████▍ | 1102/2500 [00:48<01:18, 17.87it/s]
scan: 44%|████▍ | 1104/2500 [00:48<01:17, 17.98it/s]
scan: 44%|████▍ | 1107/2500 [00:48<01:19, 17.48it/s]
scan: 44%|████▍ | 1110/2500 [00:49<01:12, 19.12it/s]
scan: 45%|████▍ | 1113/2500 [00:49<01:05, 21.14it/s]
scan: 45%|████▍ | 1116/2500 [00:49<01:04, 21.54it/s]
scan: 45%|████▍ | 1119/2500 [00:49<00:59, 23.39it/s]
scan: 45%|████▍ | 1122/2500 [00:49<00:55, 24.99it/s]
scan: 45%|████▌ | 1125/2500 [00:49<00:52, 26.31it/s]
scan: 45%|████▌ | 1129/2500 [00:49<00:50, 27.37it/s]
scan: 45%|████▌ | 1132/2500 [00:49<00:50, 27.31it/s]
scan: 45%|████▌ | 1135/2500 [00:50<00:56, 24.00it/s]
scan: 46%|████▌ | 1138/2500 [00:50<00:55, 24.54it/s]
scan: 46%|████▌ | 1141/2500 [00:50<01:25, 15.91it/s]
scan: 46%|████▌ | 1144/2500 [00:50<01:14, 18.29it/s]
scan: 46%|████▌ | 1147/2500 [00:50<01:06, 20.45it/s]
scan: 46%|████▌ | 1150/2500 [00:50<01:00, 22.37it/s]
scan: 46%|████▌ | 1153/2500 [00:50<00:56, 23.67it/s]
scan: 46%|████▌ | 1156/2500 [00:51<00:58, 23.13it/s]
scan: 46%|████▋ | 1160/2500 [00:51<00:52, 25.36it/s]
scan: 47%|████▋ | 1163/2500 [00:51<00:50, 26.47it/s]
scan: 47%|████▋ | 1167/2500 [00:51<00:48, 27.69it/s]
scan: 47%|████▋ | 1171/2500 [00:51<00:46, 28.46it/s]
scan: 47%|████▋ | 1174/2500 [00:51<00:46, 28.61it/s]
scan: 47%|████▋ | 1177/2500 [00:51<00:45, 28.93it/s]
scan: 47%|████▋ | 1180/2500 [00:51<00:45, 28.93it/s]
scan: 47%|████▋ | 1183/2500 [00:52<00:46, 28.42it/s]
scan: 47%|████▋ | 1186/2500 [00:52<00:46, 28.48it/s]
scan: 48%|████▊ | 1189/2500 [00:52<00:50, 26.07it/s]
scan: 48%|████▊ | 1192/2500 [00:52<00:49, 26.33it/s]
scan: 48%|████▊ | 1195/2500 [00:52<00:48, 27.05it/s]
scan: 48%|████▊ | 1198/2500 [00:52<00:47, 27.35it/s]
scan: 48%|████▊ | 1202/2500 [00:52<00:45, 28.32it/s]
scan: 48%|████▊ | 1206/2500 [00:52<00:45, 28.53it/s]
scan: 48%|████▊ | 1209/2500 [00:52<00:44, 28.88it/s]
scan: 49%|████▊ | 1213/2500 [00:53<00:43, 29.30it/s]
scan: 49%|████▊ | 1216/2500 [00:53<00:44, 28.74it/s]
scan: 49%|████▉ | 1219/2500 [00:53<00:47, 26.94it/s]
scan: 49%|████▉ | 1222/2500 [00:53<00:46, 27.64it/s]
scan: 49%|████▉ | 1225/2500 [00:53<00:47, 27.01it/s]
scan: 49%|████▉ | 1228/2500 [00:53<00:46, 27.38it/s]
scan: 49%|████▉ | 1231/2500 [00:53<00:47, 26.93it/s]
scan: 49%|████▉ | 1234/2500 [00:53<00:46, 27.20it/s]
scan: 49%|████▉ | 1237/2500 [00:53<00:47, 26.66it/s]
scan: 50%|████▉ | 1240/2500 [00:54<00:50, 24.82it/s]
scan: 50%|████▉ | 1243/2500 [00:55<02:49, 7.41it/s]
scan: 50%|████▉ | 1246/2500 [00:55<02:14, 9.32it/s]
scan: 50%|████▉ | 1248/2500 [00:55<02:01, 10.32it/s]
scan: 50%|█████ | 1251/2500 [00:55<01:36, 12.97it/s]
scan: 50%|█████ | 1255/2500 [00:55<01:15, 16.58it/s]
scan: 50%|█████ | 1258/2500 [00:55<01:06, 18.61it/s]
scan: 50%|█████ | 1261/2500 [00:55<00:59, 20.66it/s]
scan: 51%|█████ | 1264/2500 [00:56<00:56, 22.05it/s]
scan: 51%|█████ | 1267/2500 [00:56<00:52, 23.62it/s]
scan: 51%|█████ | 1270/2500 [00:56<00:49, 24.89it/s]
scan: 51%|█████ | 1273/2500 [00:56<01:14, 16.55it/s]
scan: 51%|█████ | 1276/2500 [00:56<01:05, 18.65it/s]
scan: 51%|█████ | 1279/2500 [00:57<02:02, 9.95it/s]
scan: 51%|█████ | 1281/2500 [00:57<01:49, 11.10it/s]
scan: 51%|█████▏ | 1283/2500 [00:57<01:46, 11.45it/s]
scan: 51%|█████▏ | 1285/2500 [00:57<01:36, 12.58it/s]
scan: 51%|█████▏ | 1287/2500 [00:57<01:31, 13.25it/s]
scan: 52%|█████▏ | 1289/2500 [00:57<01:31, 13.25it/s]
scan: 52%|█████▏ | 1291/2500 [00:58<01:27, 13.75it/s]
scan: 52%|█████▏ | 1293/2500 [00:58<01:27, 13.75it/s]
scan: 52%|█████▏ | 1295/2500 [00:58<01:31, 13.22it/s]
scan: 52%|█████▏ | 1297/2500 [00:58<02:22, 8.45it/s]
scan: 52%|█████▏ | 1299/2500 [01:00<06:05, 3.29it/s]
scan: 52%|█████▏ | 1300/2500 [01:00<06:46, 2.95it/s]
scan: 52%|█████▏ | 1302/2500 [01:01<05:09, 3.87it/s]
scan: 52%|█████▏ | 1304/2500 [01:01<03:54, 5.11it/s]
scan: 52%|█████▏ | 1306/2500 [01:01<03:09, 6.30it/s]
scan: 52%|█████▏ | 1308/2500 [01:01<02:31, 7.89it/s]
scan: 52%|█████▏ | 1310/2500 [01:01<02:05, 9.48it/s]
scan: 52%|█████▏ | 1312/2500 [01:01<01:45, 11.21it/s]
scan: 53%|█████▎ | 1314/2500 [01:01<01:31, 12.92it/s]
scan: 53%|█████▎ | 1316/2500 [01:02<03:15, 6.07it/s]
scan: 53%|█████▎ | 1318/2500 [01:03<05:24, 3.64it/s]
scan: 53%|█████▎ | 1320/2500 [01:03<04:06, 4.78it/s]
scan: 53%|█████▎ | 1322/2500 [01:03<03:14, 6.07it/s]
scan: 53%|█████▎ | 1324/2500 [01:03<02:38, 7.42it/s]
scan: 53%|█████▎ | 1326/2500 [01:04<02:21, 8.32it/s]
scan: 53%|█████▎ | 1328/2500 [01:04<02:00, 9.73it/s]
scan: 53%|█████▎ | 1330/2500 [01:04<01:45, 11.13it/s]
scan: 53%|█████▎ | 1332/2500 [01:04<01:35, 12.24it/s]
scan: 53%|█████▎ | 1334/2500 [01:04<01:29, 12.99it/s]
scan: 53%|█████▎ | 1336/2500 [01:04<01:27, 13.34it/s]
scan: 54%|█████▎ | 1338/2500 [01:04<01:27, 13.33it/s]
scan: 54%|█████▎ | 1340/2500 [01:05<01:31, 12.71it/s]
scan: 54%|█████▎ | 1342/2500 [01:05<01:25, 13.54it/s]
scan: 54%|█████▍ | 1344/2500 [01:05<01:22, 13.93it/s]
scan: 54%|█████▍ | 1346/2500 [01:05<01:22, 13.97it/s]
scan: 54%|█████▍ | 1348/2500 [01:05<01:20, 14.34it/s]
scan: 54%|█████▍ | 1350/2500 [01:05<01:16, 14.98it/s]
scan: 54%|█████▍ | 1352/2500 [01:05<01:11, 16.01it/s]
scan: 54%|█████▍ | 1354/2500 [01:05<01:08, 16.71it/s]
scan: 54%|█████▍ | 1356/2500 [01:06<01:06, 17.31it/s]
scan: 54%|█████▍ | 1358/2500 [01:06<01:38, 11.60it/s]
scan: 54%|█████▍ | 1360/2500 [01:06<01:29, 12.77it/s]
scan: 54%|█████▍ | 1362/2500 [01:06<01:24, 13.51it/s]
scan: 55%|█████▍ | 1364/2500 [01:06<01:51, 10.23it/s]
scan: 55%|█████▍ | 1366/2500 [01:07<01:51, 10.16it/s]
scan: 55%|█████▍ | 1369/2500 [01:07<01:28, 12.80it/s]
scan: 55%|█████▍ | 1372/2500 [01:07<01:11, 15.70it/s]
scan: 55%|█████▌ | 1375/2500 [01:07<01:04, 17.39it/s]
scan: 55%|█████▌ | 1378/2500 [01:07<00:57, 19.61it/s]
scan: 55%|█████▌ | 1381/2500 [01:07<00:53, 21.03it/s]
scan: 55%|█████▌ | 1384/2500 [01:07<00:49, 22.33it/s]
scan: 55%|█████▌ | 1387/2500 [01:07<00:50, 22.02it/s]
scan: 56%|█████▌ | 1390/2500 [01:08<00:49, 22.41it/s]
scan: 56%|█████▌ | 1393/2500 [01:08<01:08, 16.20it/s]
scan: 56%|█████▌ | 1396/2500 [01:08<01:02, 17.70it/s]
scan: 56%|█████▌ | 1399/2500 [01:08<00:56, 19.41it/s]
scan: 56%|█████▌ | 1402/2500 [01:08<00:52, 21.04it/s]
scan: 56%|█████▌ | 1405/2500 [01:08<00:48, 22.60it/s]
scan: 56%|█████▋ | 1408/2500 [01:08<00:47, 22.81it/s]
scan: 56%|█████▋ | 1411/2500 [01:09<00:46, 23.59it/s]
scan: 57%|█████▋ | 1414/2500 [01:09<00:44, 24.33it/s]
scan: 57%|█████▋ | 1417/2500 [01:09<00:50, 21.27it/s]
scan: 57%|█████▋ | 1420/2500 [01:09<00:49, 21.76it/s]
scan: 57%|█████▋ | 1423/2500 [01:09<00:47, 22.46it/s]
scan: 57%|█████▋ | 1426/2500 [01:09<00:47, 22.51it/s]
scan: 57%|█████▋ | 1429/2500 [01:09<00:47, 22.53it/s]
scan: 57%|█████▋ | 1432/2500 [01:10<00:47, 22.42it/s]
scan: 57%|█████▋ | 1435/2500 [01:10<00:47, 22.63it/s]
scan: 58%|█████▊ | 1438/2500 [01:10<00:45, 23.39it/s]
scan: 58%|█████▊ | 1441/2500 [01:10<00:48, 21.85it/s]
scan: 58%|█████▊ | 1444/2500 [01:10<00:46, 22.60it/s]
scan: 58%|█████▊ | 1447/2500 [01:10<00:45, 23.18it/s]
scan: 58%|█████▊ | 1450/2500 [01:10<00:44, 23.41it/s]
scan: 58%|█████▊ | 1453/2500 [01:10<00:43, 23.89it/s]
scan: 58%|█████▊ | 1456/2500 [01:11<00:43, 24.20it/s]
scan: 58%|█████▊ | 1459/2500 [01:11<00:44, 23.31it/s]
scan: 58%|█████▊ | 1462/2500 [01:11<00:45, 22.71it/s]
scan: 59%|█████▊ | 1465/2500 [01:11<00:57, 17.94it/s]
scan: 59%|█████▊ | 1467/2500 [01:11<00:57, 17.99it/s]
scan: 59%|█████▉ | 1470/2500 [01:11<00:51, 20.01it/s]
scan: 59%|█████▉ | 1473/2500 [01:11<00:47, 21.47it/s]
scan: 59%|█████▉ | 1476/2500 [01:12<00:46, 21.84it/s]
scan: 59%|█████▉ | 1479/2500 [01:12<00:45, 22.30it/s]
scan: 59%|█████▉ | 1482/2500 [01:12<00:44, 22.84it/s]
scan: 59%|█████▉ | 1485/2500 [01:12<00:43, 23.45it/s]
scan: 60%|█████▉ | 1488/2500 [01:12<00:44, 22.72it/s]
scan: 60%|█████▉ | 1491/2500 [01:12<00:43, 23.13it/s]
scan: 60%|█████▉ | 1494/2500 [01:13<01:05, 15.27it/s]
scan: 60%|█████▉ | 1497/2500 [01:13<00:57, 17.37it/s]
scan: 60%|██████ | 1500/2500 [01:13<00:55, 18.16it/s]
scan: 60%|██████ | 1503/2500 [01:13<00:51, 19.44it/s]
scan: 60%|██████ | 1506/2500 [01:13<01:17, 12.79it/s]
scan: 60%|██████ | 1508/2500 [01:14<01:48, 9.18it/s]
scan: 60%|██████ | 1510/2500 [01:14<01:40, 9.87it/s]
scan: 60%|██████ | 1512/2500 [01:14<02:22, 6.94it/s]
scan: 61%|██████ | 1515/2500 [01:15<01:44, 9.41it/s]
scan: 61%|██████ | 1518/2500 [01:15<01:29, 11.03it/s]
scan: 61%|██████ | 1521/2500 [01:15<01:14, 13.21it/s]
scan: 61%|██████ | 1524/2500 [01:15<01:03, 15.31it/s]
scan: 61%|██████ | 1527/2500 [01:15<00:57, 17.07it/s]
scan: 61%|██████ | 1530/2500 [01:15<00:54, 17.81it/s]
scan: 61%|██████▏ | 1533/2500 [01:16<00:56, 17.02it/s]
scan: 61%|██████▏ | 1536/2500 [01:16<00:51, 18.85it/s]
scan: 62%|██████▏ | 1539/2500 [01:16<00:46, 20.45it/s]
scan: 62%|██████▏ | 1542/2500 [01:16<00:45, 21.22it/s]
scan: 62%|██████▏ | 1545/2500 [01:16<00:57, 16.72it/s]
scan: 62%|██████▏ | 1547/2500 [01:16<00:55, 17.26it/s]
scan: 62%|██████▏ | 1549/2500 [01:16<00:56, 16.90it/s]
scan: 62%|██████▏ | 1552/2500 [01:17<00:50, 18.85it/s]
scan: 62%|██████▏ | 1555/2500 [01:17<00:46, 20.17it/s]
scan: 62%|██████▏ | 1558/2500 [01:17<00:42, 21.96it/s]
scan: 62%|██████▏ | 1561/2500 [01:17<00:41, 22.78it/s]
scan: 63%|██████▎ | 1564/2500 [01:17<00:39, 23.46it/s]
scan: 63%|██████▎ | 1567/2500 [01:17<00:38, 24.52it/s]
scan: 63%|██████▎ | 1570/2500 [01:17<00:38, 23.91it/s]
scan: 63%|██████▎ | 1573/2500 [01:17<00:40, 23.03it/s]
scan: 63%|██████▎ | 1576/2500 [01:18<00:41, 22.07it/s]
scan: 63%|██████▎ | 1579/2500 [01:18<00:41, 22.43it/s]
scan: 63%|██████▎ | 1582/2500 [01:18<00:39, 23.00it/s]
scan: 63%|██████▎ | 1585/2500 [01:18<00:39, 23.03it/s]
scan: 64%|██████▎ | 1588/2500 [01:18<00:39, 23.29it/s]
scan: 64%|██████▎ | 1591/2500 [01:18<00:38, 23.90it/s]
scan: 64%|██████▍ | 1594/2500 [01:18<00:38, 23.77it/s]
scan: 64%|██████▍ | 1597/2500 [01:18<00:37, 24.05it/s]
scan: 64%|██████▍ | 1600/2500 [01:19<00:42, 21.04it/s]
scan: 64%|██████▍ | 1603/2500 [01:19<00:44, 20.08it/s]
scan: 64%|██████▍ | 1606/2500 [01:19<00:46, 19.19it/s]
scan: 64%|██████▍ | 1608/2500 [01:19<00:47, 18.79it/s]
scan: 64%|██████▍ | 1611/2500 [01:19<00:42, 20.71it/s]
scan: 65%|██████▍ | 1614/2500 [01:19<00:40, 21.73it/s]
scan: 65%|██████▍ | 1617/2500 [01:19<00:39, 22.18it/s]
scan: 65%|██████▍ | 1620/2500 [01:20<00:39, 22.46it/s]
scan: 65%|██████▍ | 1623/2500 [01:20<00:45, 19.14it/s]
scan: 65%|██████▌ | 1626/2500 [01:20<00:41, 20.86it/s]
scan: 65%|██████▌ | 1629/2500 [01:20<00:40, 21.60it/s]
scan: 65%|██████▌ | 1632/2500 [01:20<00:39, 22.23it/s]
scan: 65%|██████▌ | 1635/2500 [01:20<00:54, 15.74it/s]
scan: 66%|██████▌ | 1638/2500 [01:21<00:50, 17.22it/s]
scan: 66%|██████▌ | 1640/2500 [01:21<00:53, 15.94it/s]
scan: 66%|██████▌ | 1643/2500 [01:21<00:47, 18.15it/s]
scan: 66%|██████▌ | 1646/2500 [01:21<00:43, 19.86it/s]
scan: 66%|██████▌ | 1649/2500 [01:21<00:41, 20.46it/s]
scan: 66%|██████▌ | 1652/2500 [01:22<01:32, 9.16it/s]
scan: 66%|██████▌ | 1655/2500 [01:22<01:13, 11.47it/s]
scan: 66%|██████▋ | 1658/2500 [01:22<01:01, 13.69it/s]
scan: 66%|██████▋ | 1661/2500 [01:22<00:52, 15.90it/s]
scan: 67%|██████▋ | 1664/2500 [01:22<00:46, 17.96it/s]
scan: 67%|██████▋ | 1667/2500 [01:22<00:44, 18.64it/s]
scan: 67%|██████▋ | 1670/2500 [01:23<00:41, 20.21it/s]
scan: 67%|██████▋ | 1673/2500 [01:23<00:39, 20.86it/s]
scan: 67%|██████▋ | 1676/2500 [01:23<01:20, 10.25it/s]
scan: 67%|██████▋ | 1678/2500 [01:24<01:23, 9.82it/s]
scan: 67%|██████▋ | 1681/2500 [01:24<01:06, 12.28it/s]
scan: 67%|██████▋ | 1684/2500 [01:24<00:56, 14.47it/s]
scan: 67%|██████▋ | 1686/2500 [01:24<01:08, 11.82it/s]
scan: 68%|██████▊ | 1689/2500 [01:24<00:58, 13.87it/s]
scan: 68%|██████▊ | 1692/2500 [01:24<00:50, 16.13it/s]
scan: 68%|██████▊ | 1695/2500 [01:24<00:44, 18.14it/s]
scan: 68%|██████▊ | 1698/2500 [01:25<00:40, 19.90it/s]
scan: 68%|██████▊ | 1701/2500 [01:25<00:36, 21.66it/s]
scan: 68%|██████▊ | 1704/2500 [01:25<00:39, 20.29it/s]
scan: 68%|██████▊ | 1707/2500 [01:25<00:54, 14.44it/s]
scan: 68%|██████▊ | 1710/2500 [01:25<00:47, 16.73it/s]
scan: 69%|██████▊ | 1713/2500 [01:25<00:42, 18.40it/s]
scan: 69%|██████▊ | 1716/2500 [01:26<01:08, 11.53it/s]
scan: 69%|██████▊ | 1718/2500 [01:26<01:01, 12.70it/s]
scan: 69%|██████▉ | 1720/2500 [01:26<00:56, 13.92it/s]
scan: 69%|██████▉ | 1723/2500 [01:26<00:47, 16.50it/s]
scan: 69%|██████▉ | 1726/2500 [01:27<00:55, 13.91it/s]
scan: 69%|██████▉ | 1729/2500 [01:27<00:46, 16.43it/s]
scan: 69%|██████▉ | 1732/2500 [01:27<00:41, 18.70it/s]
scan: 69%|██████▉ | 1735/2500 [01:27<00:37, 20.57it/s]
scan: 70%|██████▉ | 1738/2500 [01:27<00:35, 21.39it/s]
scan: 70%|██████▉ | 1741/2500 [01:27<00:34, 21.70it/s]
scan: 70%|██████▉ | 1744/2500 [01:28<01:15, 10.00it/s]
scan: 70%|██████▉ | 1746/2500 [01:28<01:31, 8.25it/s]
scan: 70%|██████▉ | 1748/2500 [01:28<01:20, 9.35it/s]
scan: 70%|███████ | 1751/2500 [01:28<01:04, 11.69it/s]
scan: 70%|███████ | 1754/2500 [01:29<00:52, 14.26it/s]
scan: 70%|███████ | 1756/2500 [01:29<00:48, 15.23it/s]
scan: 70%|███████ | 1758/2500 [01:29<01:41, 7.33it/s]
scan: 70%|███████ | 1761/2500 [01:29<01:15, 9.79it/s]
scan: 71%|███████ | 1764/2500 [01:30<01:00, 12.22it/s]
scan: 71%|███████ | 1767/2500 [01:30<00:49, 14.88it/s]
scan: 71%|███████ | 1770/2500 [01:30<00:42, 17.21it/s]
scan: 71%|███████ | 1773/2500 [01:30<00:37, 19.22it/s]
scan: 71%|███████ | 1776/2500 [01:30<00:34, 20.95it/s]
scan: 71%|███████ | 1779/2500 [01:30<00:32, 22.46it/s]
scan: 71%|███████▏ | 1782/2500 [01:30<00:30, 23.65it/s]
scan: 71%|███████▏ | 1785/2500 [01:30<00:33, 21.52it/s]
scan: 72%|███████▏ | 1788/2500 [01:31<00:31, 22.55it/s]
scan: 72%|███████▏ | 1791/2500 [01:31<00:30, 23.07it/s]
scan: 72%|███████▏ | 1794/2500 [01:31<00:30, 23.41it/s]
scan: 72%|███████▏ | 1797/2500 [01:31<00:29, 23.72it/s]
scan: 72%|███████▏ | 1800/2500 [01:31<00:29, 23.70it/s]
scan: 72%|███████▏ | 1803/2500 [01:31<00:28, 24.66it/s]
scan: 72%|███████▏ | 1806/2500 [01:31<00:27, 25.26it/s]
scan: 72%|███████▏ | 1809/2500 [01:31<00:26, 25.67it/s]
scan: 72%|███████▏ | 1812/2500 [01:32<00:28, 24.13it/s]
scan: 73%|███████▎ | 1815/2500 [01:32<00:28, 24.30it/s]
scan: 73%|███████▎ | 1818/2500 [01:32<00:27, 25.01it/s]
scan: 73%|███████▎ | 1821/2500 [01:32<00:26, 25.62it/s]
scan: 73%|███████▎ | 1824/2500 [01:32<00:26, 25.10it/s]
scan: 73%|███████▎ | 1827/2500 [01:32<00:26, 25.56it/s]
scan: 73%|███████▎ | 1830/2500 [01:32<00:25, 25.78it/s]
scan: 73%|███████▎ | 1833/2500 [01:32<00:26, 25.32it/s]
scan: 73%|███████▎ | 1836/2500 [01:32<00:26, 25.42it/s]
scan: 74%|███████▎ | 1839/2500 [01:33<00:27, 24.26it/s]
scan: 74%|███████▎ | 1842/2500 [01:33<00:27, 24.26it/s]
scan: 74%|███████▍ | 1845/2500 [01:33<00:26, 24.52it/s]
scan: 74%|███████▍ | 1848/2500 [01:33<00:27, 23.84it/s]
scan: 74%|███████▍ | 1851/2500 [01:33<00:26, 24.09it/s]
scan: 74%|███████▍ | 1854/2500 [01:33<00:26, 24.04it/s]
scan: 74%|███████▍ | 1857/2500 [01:33<00:26, 24.33it/s]
scan: 74%|███████▍ | 1860/2500 [01:33<00:25, 24.91it/s]
scan: 75%|███████▍ | 1863/2500 [01:34<00:25, 25.27it/s]
scan: 75%|███████▍ | 1866/2500 [01:34<00:28, 22.03it/s]
scan: 75%|███████▍ | 1869/2500 [01:34<00:27, 23.36it/s]
scan: 75%|███████▍ | 1872/2500 [01:34<00:26, 24.03it/s]
scan: 75%|███████▌ | 1875/2500 [01:34<00:25, 24.39it/s]
scan: 75%|███████▌ | 1878/2500 [01:34<00:24, 25.00it/s]
scan: 75%|███████▌ | 1881/2500 [01:34<00:24, 25.16it/s]
scan: 75%|███████▌ | 1884/2500 [01:34<00:25, 24.13it/s]
scan: 75%|███████▌ | 1887/2500 [01:35<00:25, 23.58it/s]
scan: 76%|███████▌ | 1890/2500 [01:35<00:26, 23.27it/s]
scan: 76%|███████▌ | 1893/2500 [01:35<00:26, 23.24it/s]
scan: 76%|███████▌ | 1896/2500 [01:35<00:27, 22.16it/s]
scan: 76%|███████▌ | 1899/2500 [01:35<00:27, 22.07it/s]
scan: 76%|███████▌ | 1902/2500 [01:35<00:26, 22.80it/s]
scan: 76%|███████▌ | 1905/2500 [01:35<00:24, 23.90it/s]
scan: 76%|███████▋ | 1908/2500 [01:36<00:25, 23.25it/s]
scan: 76%|███████▋ | 1911/2500 [01:36<00:24, 24.31it/s]
scan: 77%|███████▋ | 1914/2500 [01:36<00:39, 14.67it/s]
scan: 77%|███████▋ | 1917/2500 [01:36<00:34, 16.86it/s]
scan: 77%|███████▋ | 1920/2500 [01:36<00:31, 18.52it/s]
scan: 77%|███████▋ | 1923/2500 [01:36<00:28, 20.04it/s]
scan: 77%|███████▋ | 1926/2500 [01:37<00:26, 21.32it/s]
scan: 77%|███████▋ | 1929/2500 [01:37<01:11, 7.96it/s]
scan: 77%|███████▋ | 1931/2500 [01:38<01:03, 8.90it/s]
scan: 77%|███████▋ | 1934/2500 [01:38<00:50, 11.27it/s]
scan: 77%|███████▋ | 1937/2500 [01:38<00:43, 12.93it/s]
scan: 78%|███████▊ | 1939/2500 [01:38<00:42, 13.23it/s]
scan: 78%|███████▊ | 1941/2500 [01:38<00:38, 14.37it/s]
scan: 78%|███████▊ | 1944/2500 [01:38<00:33, 16.48it/s]
scan: 78%|███████▊ | 1947/2500 [01:38<00:30, 17.94it/s]
scan: 78%|███████▊ | 1950/2500 [01:38<00:28, 19.39it/s]
scan: 78%|███████▊ | 1953/2500 [01:39<00:25, 21.42it/s]
scan: 78%|███████▊ | 1956/2500 [01:39<00:23, 22.76it/s]
scan: 78%|███████▊ | 1959/2500 [01:39<00:22, 24.10it/s]
scan: 78%|███████▊ | 1962/2500 [01:39<00:21, 24.94it/s]
scan: 79%|███████▊ | 1965/2500 [01:39<00:22, 23.58it/s]
scan: 79%|███████▊ | 1968/2500 [01:39<00:23, 22.33it/s]
scan: 79%|███████▉ | 1971/2500 [01:39<00:22, 23.31it/s]
scan: 79%|███████▉ | 1974/2500 [01:39<00:22, 23.69it/s]
scan: 79%|███████▉ | 1977/2500 [01:40<00:21, 24.26it/s]
scan: 79%|███████▉ | 1980/2500 [01:40<00:20, 24.78it/s]
scan: 79%|███████▉ | 1983/2500 [01:40<00:20, 24.79it/s]
scan: 79%|███████▉ | 1986/2500 [01:40<00:26, 19.12it/s]
scan: 80%|███████▉ | 1989/2500 [01:41<00:50, 10.11it/s]
scan: 80%|███████▉ | 1992/2500 [01:41<00:41, 12.32it/s]
scan: 80%|███████▉ | 1995/2500 [01:41<00:35, 14.41it/s]
scan: 80%|███████▉ | 1998/2500 [01:41<00:32, 15.33it/s]
scan: 80%|████████ | 2001/2500 [01:41<00:32, 15.48it/s]
scan: 80%|████████ | 2003/2500 [01:41<00:31, 15.83it/s]
scan: 80%|████████ | 2006/2500 [01:42<00:27, 18.22it/s]
scan: 80%|████████ | 2009/2500 [01:42<00:24, 20.29it/s]
scan: 80%|████████ | 2012/2500 [01:42<00:22, 22.05it/s]
scan: 81%|████████ | 2015/2500 [01:43<01:01, 7.87it/s]
scan: 81%|████████ | 2018/2500 [01:43<00:48, 9.99it/s]
scan: 81%|████████ | 2021/2500 [01:44<01:42, 4.68it/s]
scan: 81%|████████ | 2024/2500 [01:44<01:16, 6.23it/s]
scan: 81%|████████ | 2026/2500 [01:44<01:06, 7.14it/s]
scan: 81%|████████ | 2028/2500 [01:45<00:56, 8.29it/s]
scan: 81%|████████ | 2030/2500 [01:45<00:49, 9.45it/s]
scan: 81%|████████▏ | 2032/2500 [01:45<01:05, 7.12it/s]
scan: 81%|████████▏ | 2034/2500 [01:45<01:07, 6.90it/s]
scan: 81%|████████▏ | 2036/2500 [01:46<01:05, 7.13it/s]
scan: 82%|████████▏ | 2039/2500 [01:46<00:54, 8.51it/s]
scan: 82%|████████▏ | 2042/2500 [01:46<00:41, 10.97it/s]
scan: 82%|████████▏ | 2045/2500 [01:46<00:33, 13.50it/s]
scan: 82%|████████▏ | 2048/2500 [01:46<00:28, 15.61it/s]
scan: 82%|████████▏ | 2051/2500 [01:46<00:25, 17.72it/s]
scan: 82%|████████▏ | 2054/2500 [01:47<00:22, 19.94it/s]
scan: 82%|████████▏ | 2057/2500 [01:47<00:22, 19.44it/s]
scan: 82%|████████▏ | 2060/2500 [01:47<00:21, 20.29it/s]
scan: 83%|████████▎ | 2063/2500 [01:47<00:21, 20.74it/s]
scan: 83%|████████▎ | 2066/2500 [01:47<00:19, 21.86it/s]
scan: 83%|████████▎ | 2069/2500 [01:47<00:21, 20.36it/s]
scan: 83%|████████▎ | 2072/2500 [01:48<00:23, 18.54it/s]
scan: 83%|████████▎ | 2075/2500 [01:48<00:21, 19.77it/s]
scan: 83%|████████▎ | 2078/2500 [01:48<00:20, 20.70it/s]
scan: 83%|████████▎ | 2081/2500 [01:48<00:20, 20.80it/s]
scan: 83%|████████▎ | 2084/2500 [01:48<00:19, 21.81it/s]
scan: 83%|████████▎ | 2087/2500 [01:48<00:18, 22.33it/s]
scan: 84%|████████▎ | 2090/2500 [01:48<00:17, 22.92it/s]
scan: 84%|████████▎ | 2093/2500 [01:48<00:17, 23.52it/s]
scan: 84%|████████▍ | 2096/2500 [01:49<00:17, 23.57it/s]
scan: 84%|████████▍ | 2099/2500 [01:49<00:44, 8.98it/s]
scan: 84%|████████▍ | 2102/2500 [01:49<00:35, 11.32it/s]
scan: 84%|████████▍ | 2105/2500 [01:50<00:28, 13.77it/s]
scan: 84%|████████▍ | 2109/2500 [01:50<00:22, 17.23it/s]
scan: 84%|████████▍ | 2112/2500 [01:50<00:19, 19.42it/s]
scan: 85%|████████▍ | 2115/2500 [01:50<00:18, 21.35it/s]
scan: 85%|████████▍ | 2118/2500 [01:51<00:42, 8.96it/s]
scan: 85%|████████▍ | 2121/2500 [01:51<00:34, 10.87it/s]
scan: 85%|████████▍ | 2124/2500 [01:51<00:34, 10.88it/s]
scan: 85%|████████▌ | 2126/2500 [01:51<00:33, 11.03it/s]
scan: 85%|████████▌ | 2129/2500 [01:51<00:28, 13.07it/s]
scan: 85%|████████▌ | 2132/2500 [01:52<00:24, 15.08it/s]
scan: 85%|████████▌ | 2135/2500 [01:52<00:22, 16.48it/s]
scan: 86%|████████▌ | 2138/2500 [01:52<00:20, 17.97it/s]
scan: 86%|████████▌ | 2141/2500 [01:52<00:18, 19.78it/s]
scan: 86%|████████▌ | 2144/2500 [01:52<00:16, 21.05it/s]
scan: 86%|████████▌ | 2147/2500 [01:52<00:17, 20.22it/s]
scan: 86%|████████▌ | 2150/2500 [01:52<00:16, 20.99it/s]
scan: 86%|████████▌ | 2153/2500 [01:52<00:15, 22.48it/s]
scan: 86%|████████▌ | 2156/2500 [01:53<00:14, 23.89it/s]
scan: 86%|████████▋ | 2159/2500 [01:53<00:13, 24.88it/s]
scan: 86%|████████▋ | 2162/2500 [01:53<00:13, 25.74it/s]
scan: 87%|████████▋ | 2165/2500 [01:53<00:12, 26.22it/s]
scan: 87%|████████▋ | 2168/2500 [01:53<00:12, 26.75it/s]
scan: 87%|████████▋ | 2171/2500 [01:53<00:12, 25.31it/s]
scan: 87%|████████▋ | 2174/2500 [01:53<00:17, 18.74it/s]
scan: 87%|████████▋ | 2177/2500 [01:54<00:15, 20.25it/s]
scan: 87%|████████▋ | 2180/2500 [01:54<00:22, 14.54it/s]
scan: 87%|████████▋ | 2183/2500 [01:54<00:19, 16.12it/s]
scan: 87%|████████▋ | 2186/2500 [01:54<00:19, 15.81it/s]
scan: 88%|████████▊ | 2189/2500 [01:54<00:18, 16.54it/s]
scan: 88%|████████▊ | 2192/2500 [01:54<00:16, 18.63it/s]
scan: 88%|████████▊ | 2195/2500 [01:55<00:15, 20.20it/s]
scan: 88%|████████▊ | 2198/2500 [01:55<00:25, 11.68it/s]
scan: 88%|████████▊ | 2201/2500 [01:55<00:21, 14.03it/s]
scan: 88%|████████▊ | 2204/2500 [01:55<00:18, 16.25it/s]
scan: 88%|████████▊ | 2207/2500 [01:55<00:16, 17.48it/s]
scan: 88%|████████▊ | 2210/2500 [01:56<00:14, 19.34it/s]
scan: 89%|████████▊ | 2213/2500 [01:56<00:13, 21.39it/s]
scan: 89%|████████▊ | 2216/2500 [01:56<00:12, 23.13it/s]
scan: 89%|████████▉ | 2219/2500 [01:56<00:18, 15.43it/s]
scan: 89%|████████▉ | 2222/2500 [01:57<00:39, 7.09it/s]
scan: 89%|████████▉ | 2224/2500 [01:57<00:37, 7.45it/s]
scan: 89%|████████▉ | 2226/2500 [01:57<00:31, 8.64it/s]
scan: 89%|████████▉ | 2228/2500 [01:58<00:26, 10.09it/s]
scan: 89%|████████▉ | 2230/2500 [01:58<00:23, 11.41it/s]
scan: 89%|████████▉ | 2232/2500 [01:58<00:40, 6.54it/s]
scan: 89%|████████▉ | 2235/2500 [01:58<00:29, 8.87it/s]
scan: 90%|████████▉ | 2238/2500 [01:59<00:22, 11.41it/s]
scan: 90%|████████▉ | 2240/2500 [01:59<00:21, 11.84it/s]
scan: 90%|████████▉ | 2243/2500 [01:59<00:18, 13.88it/s]
scan: 90%|████████▉ | 2245/2500 [02:00<00:36, 7.06it/s]
scan: 90%|████████▉ | 2247/2500 [02:00<00:32, 7.81it/s]
scan: 90%|████████▉ | 2249/2500 [02:00<00:31, 8.07it/s]
scan: 90%|█████████ | 2252/2500 [02:00<00:22, 10.88it/s]
scan: 90%|█████████ | 2255/2500 [02:00<00:17, 13.70it/s]
scan: 90%|█████████ | 2258/2500 [02:00<00:14, 16.43it/s]
scan: 90%|█████████ | 2261/2500 [02:00<00:13, 18.37it/s]
scan: 91%|█████████ | 2264/2500 [02:01<00:11, 20.24it/s]
scan: 91%|█████████ | 2267/2500 [02:01<00:10, 22.07it/s]
scan: 91%|█████████ | 2270/2500 [02:01<00:10, 22.88it/s]
scan: 91%|█████████ | 2273/2500 [02:01<00:10, 21.00it/s]
scan: 91%|█████████ | 2276/2500 [02:01<00:10, 21.88it/s]
scan: 91%|█████████ | 2279/2500 [02:01<00:10, 20.82it/s]
scan: 91%|█████████▏| 2282/2500 [02:01<00:09, 22.20it/s]
scan: 91%|█████████▏| 2285/2500 [02:01<00:09, 23.32it/s]
scan: 92%|█████████▏| 2288/2500 [02:02<00:09, 23.55it/s]
scan: 92%|█████████▏| 2291/2500 [02:02<00:16, 12.99it/s]
scan: 92%|█████████▏| 2294/2500 [02:02<00:13, 15.08it/s]
scan: 92%|█████████▏| 2297/2500 [02:02<00:12, 16.91it/s]
scan: 92%|█████████▏| 2300/2500 [02:02<00:10, 18.78it/s]
scan: 92%|█████████▏| 2303/2500 [02:03<00:09, 19.88it/s]
scan: 92%|█████████▏| 2306/2500 [02:03<00:09, 21.31it/s]
scan: 92%|█████████▏| 2309/2500 [02:03<00:09, 20.18it/s]
scan: 92%|█████████▏| 2312/2500 [02:03<00:08, 21.94it/s]
scan: 93%|█████████▎| 2315/2500 [02:03<00:11, 16.71it/s]
scan: 93%|█████████▎| 2318/2500 [02:03<00:09, 18.55it/s]
scan: 93%|█████████▎| 2321/2500 [02:03<00:08, 20.19it/s]
scan: 93%|█████████▎| 2324/2500 [02:04<00:08, 21.94it/s]
scan: 93%|█████████▎| 2327/2500 [02:04<00:07, 23.50it/s]
scan: 93%|█████████▎| 2330/2500 [02:04<00:08, 19.82it/s]
scan: 93%|█████████▎| 2333/2500 [02:04<00:07, 21.57it/s]
scan: 93%|█████████▎| 2336/2500 [02:04<00:07, 21.11it/s]
scan: 94%|█████████▎| 2339/2500 [02:04<00:07, 22.56it/s]
scan: 94%|█████████▎| 2342/2500 [02:04<00:06, 23.46it/s]
scan: 94%|█████████▍| 2345/2500 [02:04<00:06, 23.76it/s]
scan: 94%|█████████▍| 2348/2500 [02:05<00:06, 23.92it/s]
scan: 94%|█████████▍| 2351/2500 [02:05<00:06, 24.80it/s]
scan: 94%|█████████▍| 2354/2500 [02:05<00:05, 25.78it/s]
scan: 94%|█████████▍| 2357/2500 [02:05<00:05, 26.56it/s]
scan: 94%|█████████▍| 2360/2500 [02:05<00:05, 26.06it/s]
scan: 95%|█████████▍| 2363/2500 [02:05<00:05, 23.96it/s]
scan: 95%|█████████▍| 2366/2500 [02:05<00:05, 24.98it/s]
scan: 95%|█████████▍| 2369/2500 [02:05<00:05, 25.72it/s]
scan: 95%|█████████▍| 2372/2500 [02:06<00:05, 25.49it/s]
scan: 95%|█████████▌| 2375/2500 [02:06<00:04, 26.04it/s]
scan: 95%|█████████▌| 2378/2500 [02:06<00:04, 26.45it/s]
scan: 95%|█████████▌| 2381/2500 [02:06<00:04, 26.98it/s]
scan: 95%|█████████▌| 2384/2500 [02:06<00:04, 26.97it/s]
scan: 95%|█████████▌| 2387/2500 [02:06<00:04, 23.46it/s]
scan: 96%|█████████▌| 2390/2500 [02:06<00:05, 19.95it/s]
scan: 96%|█████████▌| 2393/2500 [02:06<00:05, 20.91it/s]
scan: 96%|█████████▌| 2396/2500 [02:07<00:04, 22.26it/s]
scan: 96%|█████████▌| 2399/2500 [02:07<00:04, 22.38it/s]
scan: 96%|█████████▌| 2402/2500 [02:07<00:04, 23.53it/s]
scan: 96%|█████████▌| 2405/2500 [02:07<00:04, 23.75it/s]
scan: 96%|█████████▋| 2408/2500 [02:07<00:03, 23.74it/s]
scan: 96%|█████████▋| 2411/2500 [02:07<00:03, 24.79it/s]
scan: 97%|█████████▋| 2414/2500 [02:07<00:03, 23.68it/s]
scan: 97%|█████████▋| 2417/2500 [02:07<00:03, 22.95it/s]
scan: 97%|█████████▋| 2420/2500 [02:08<00:03, 22.59it/s]
scan: 97%|█████████▋| 2423/2500 [02:08<00:03, 23.55it/s]
scan: 97%|█████████▋| 2426/2500 [02:08<00:03, 24.38it/s]
scan: 97%|█████████▋| 2429/2500 [02:08<00:02, 25.32it/s]
scan: 97%|█████████▋| 2432/2500 [02:08<00:02, 25.66it/s]
scan: 97%|█████████▋| 2435/2500 [02:08<00:02, 25.71it/s]
scan: 98%|█████████▊| 2438/2500 [02:08<00:02, 26.05it/s]
scan: 98%|█████████▊| 2441/2500 [02:08<00:02, 23.92it/s]
scan: 98%|█████████▊| 2444/2500 [02:09<00:02, 24.43it/s]
scan: 98%|█████████▊| 2447/2500 [02:09<00:02, 24.84it/s]
scan: 98%|█████████▊| 2450/2500 [02:09<00:02, 24.82it/s]
scan: 98%|█████████▊| 2453/2500 [02:09<00:01, 25.42it/s]
scan: 98%|█████████▊| 2456/2500 [02:09<00:01, 26.18it/s]
scan: 98%|█████████▊| 2459/2500 [02:09<00:01, 23.95it/s]
scan: 98%|█████████▊| 2462/2500 [02:09<00:01, 24.75it/s]
scan: 99%|█████████▊| 2465/2500 [02:09<00:01, 25.25it/s]
scan: 99%|█████████▊| 2468/2500 [02:10<00:01, 19.47it/s]
scan: 99%|█████████▉| 2471/2500 [02:10<00:01, 21.23it/s]
scan: 99%|█████████▉| 2474/2500 [02:10<00:01, 20.88it/s]
scan: 99%|█████████▉| 2477/2500 [02:10<00:01, 22.49it/s]
scan: 99%|█████████▉| 2480/2500 [02:10<00:00, 23.10it/s]
scan: 99%|█████████▉| 2483/2500 [02:10<00:00, 23.81it/s]
scan: 99%|█████████▉| 2486/2500 [02:10<00:00, 24.07it/s]
scan: 100%|█████████▉| 2489/2500 [02:11<00:00, 22.29it/s]
scan: 100%|█████████▉| 2492/2500 [02:11<00:00, 21.67it/s]
scan: 100%|█████████▉| 2495/2500 [02:11<00:00, 22.43it/s]
scan: 100%|█████████▉| 2498/2500 [02:11<00:00, 23.01it/s]
scan: 100%|██████████| 2500/2500 [02:11<00:00, 19.01it/s]
Case without synchrotron longitudinal damping
Without synchrotron damping, the “textbook” picture is obtained.
See Fig.7 of [1] for example.
[1]: Pedersen, F. (1994). Multibunch instabilities. In Frontiers of Particle Beams: Factories with e+ e− Rings (pp. 269-292). Springer, Berlin, Heidelberg.
ring.tau[2] = 100 # Long damping time
psi_MC_vals = np.linspace(-80, 80, 50)
I0_vals = np.linspace(1e-3, 1.5, 50)
eq_opts = EquilibriumOptions(auto_set_MC_theta=False,
optimal_tunning=False)
# Without synchrotron damping, make a custom flow with only ZeroFrequency and
# use RobinsonCoupling to avoid a 'false positive' PTBL because of no synchrotron
# longitudinal damping.
flow_he = Flow(AlvesEquilibrium(),
[ZeroFrequency(), RobinsonCoupling()],
name="Alves")
result = scan_MC_psi_I0(
SystemState(ring, [MC, HC]),
psi_MC_vals,
I0_vals,
flow=flow_he,
eq_opts=eq_opts)
result.plot("xi")
scan: 0%| | 0/2500 [00:00<?, ?it/s]
scan: 1%| | 19/2500 [00:00<00:13, 189.86it/s]
scan: 2%|▏ | 38/2500 [00:00<00:14, 167.00it/s]
scan: 2%|▏ | 55/2500 [00:00<00:15, 157.74it/s]
scan: 3%|▎ | 72/2500 [00:00<00:15, 159.74it/s]
scan: 4%|▎ | 89/2500 [00:00<00:15, 152.14it/s]
scan: 4%|▍ | 105/2500 [00:00<00:16, 148.30it/s]
scan: 5%|▍ | 123/2500 [00:00<00:15, 156.58it/s]
scan: 6%|▌ | 139/2500 [00:00<00:15, 151.68it/s]
scan: 6%|▌ | 155/2500 [00:01<00:15, 148.56it/s]
scan: 7%|▋ | 173/2500 [00:01<00:14, 155.69it/s]
scan: 8%|▊ | 189/2500 [00:01<00:15, 149.25it/s]
scan: 8%|▊ | 205/2500 [00:01<00:15, 147.29it/s]
scan: 9%|▉ | 223/2500 [00:01<00:14, 154.61it/s]
scan: 10%|▉ | 239/2500 [00:01<00:15, 148.14it/s]
scan: 10%|█ | 254/2500 [00:01<00:15, 146.08it/s]
scan: 11%|█ | 272/2500 [00:01<00:14, 154.80it/s]
scan: 12%|█▏ | 288/2500 [00:01<00:14, 149.46it/s]
scan: 12%|█▏ | 304/2500 [00:02<00:14, 146.76it/s]
scan: 13%|█▎ | 322/2500 [00:02<00:14, 154.60it/s]
scan: 14%|█▎ | 338/2500 [00:02<00:14, 149.86it/s]
scan: 14%|█▍ | 354/2500 [00:02<00:14, 145.73it/s]
scan: 15%|█▍ | 372/2500 [00:02<00:13, 154.69it/s]
scan: 16%|█▌ | 388/2500 [00:02<00:14, 149.92it/s]
scan: 16%|█▌ | 404/2500 [00:02<00:14, 147.34it/s]
scan: 17%|█▋ | 422/2500 [00:02<00:13, 155.27it/s]
scan: 18%|█▊ | 438/2500 [00:02<00:13, 150.72it/s]
scan: 18%|█▊ | 454/2500 [00:02<00:13, 147.11it/s]
scan: 19%|█▉ | 472/2500 [00:03<00:13, 154.10it/s]
scan: 20%|█▉ | 488/2500 [00:03<00:13, 150.50it/s]
scan: 20%|██ | 504/2500 [00:03<00:13, 147.94it/s]
scan: 21%|██ | 522/2500 [00:03<00:12, 154.00it/s]
scan: 22%|██▏ | 538/2500 [00:03<00:13, 149.41it/s]
scan: 22%|██▏ | 553/2500 [00:03<00:13, 146.38it/s]
scan: 23%|██▎ | 571/2500 [00:03<00:12, 153.90it/s]
scan: 23%|██▎ | 587/2500 [00:03<00:12, 151.16it/s]
scan: 24%|██▍ | 603/2500 [00:03<00:12, 148.03it/s]
scan: 25%|██▍ | 621/2500 [00:04<00:12, 156.54it/s]
scan: 25%|██▌ | 637/2500 [00:04<00:12, 151.62it/s]
scan: 26%|██▌ | 653/2500 [00:04<00:12, 147.69it/s]
scan: 27%|██▋ | 671/2500 [00:04<00:11, 154.59it/s]
scan: 27%|██▋ | 687/2500 [00:04<00:12, 150.03it/s]
scan: 28%|██▊ | 703/2500 [00:04<00:12, 146.22it/s]
scan: 29%|██▉ | 721/2500 [00:04<00:11, 154.73it/s]
scan: 29%|██▉ | 737/2500 [00:04<00:11, 151.83it/s]
scan: 30%|███ | 753/2500 [00:04<00:11, 148.55it/s]
scan: 31%|███ | 769/2500 [00:05<00:13, 130.02it/s]
scan: 31%|███▏ | 784/2500 [00:05<00:12, 134.79it/s]
scan: 32%|███▏ | 798/2500 [00:05<00:12, 133.16it/s]
scan: 33%|███▎ | 816/2500 [00:05<00:11, 144.76it/s]
scan: 33%|███▎ | 832/2500 [00:05<00:11, 146.57it/s]
scan: 34%|███▍ | 847/2500 [00:05<00:11, 141.36it/s]
scan: 35%|███▍ | 864/2500 [00:05<00:10, 148.88it/s]
scan: 35%|███▌ | 880/2500 [00:05<00:10, 151.06it/s]
scan: 36%|███▌ | 896/2500 [00:05<00:10, 145.95it/s]
scan: 37%|███▋ | 914/2500 [00:06<00:10, 153.78it/s]
scan: 37%|███▋ | 931/2500 [00:06<00:10, 156.06it/s]
scan: 38%|███▊ | 947/2500 [00:06<00:10, 148.47it/s]
scan: 39%|███▊ | 965/2500 [00:06<00:09, 155.88it/s]
scan: 39%|███▉ | 982/2500 [00:06<00:09, 156.78it/s]
scan: 40%|███▉ | 998/2500 [00:06<00:10, 147.61it/s]
scan: 41%|████ | 1016/2500 [00:06<00:09, 155.47it/s]
scan: 41%|████▏ | 1033/2500 [00:06<00:09, 156.61it/s]
scan: 42%|████▏ | 1049/2500 [00:06<00:09, 148.16it/s]
scan: 43%|████▎ | 1068/2500 [00:07<00:09, 157.95it/s]
scan: 43%|████▎ | 1084/2500 [00:07<00:08, 158.01it/s]
scan: 44%|████▍ | 1100/2500 [00:07<00:11, 124.82it/s]
scan: 45%|████▍ | 1119/2500 [00:07<00:09, 139.26it/s]
scan: 45%|████▌ | 1135/2500 [00:07<00:09, 143.51it/s]
scan: 46%|████▌ | 1151/2500 [00:07<00:09, 142.75it/s]
scan: 47%|████▋ | 1170/2500 [00:07<00:08, 154.38it/s]
scan: 47%|████▋ | 1186/2500 [00:07<00:08, 154.65it/s]
scan: 48%|████▊ | 1202/2500 [00:08<00:08, 151.73it/s]
scan: 49%|████▉ | 1221/2500 [00:08<00:07, 161.71it/s]
scan: 50%|████▉ | 1238/2500 [00:08<00:07, 159.57it/s]
scan: 50%|█████ | 1255/2500 [00:08<00:07, 158.43it/s]
scan: 51%|█████ | 1274/2500 [00:08<00:07, 165.46it/s]
scan: 52%|█████▏ | 1291/2500 [00:08<00:07, 161.55it/s]
scan: 52%|█████▏ | 1308/2500 [00:08<00:07, 162.06it/s]
scan: 53%|█████▎ | 1326/2500 [00:08<00:07, 166.43it/s]
scan: 54%|█████▎ | 1343/2500 [00:08<00:07, 160.96it/s]
scan: 54%|█████▍ | 1360/2500 [00:08<00:07, 162.73it/s]
scan: 55%|█████▌ | 1378/2500 [00:09<00:06, 165.89it/s]
scan: 56%|█████▌ | 1395/2500 [00:09<00:06, 159.51it/s]
scan: 57%|█████▋ | 1413/2500 [00:09<00:06, 163.50it/s]
scan: 57%|█████▋ | 1430/2500 [00:09<00:06, 164.89it/s]
scan: 58%|█████▊ | 1447/2500 [00:09<00:06, 156.72it/s]
scan: 59%|█████▊ | 1465/2500 [00:09<00:06, 162.69it/s]
scan: 59%|█████▉ | 1482/2500 [00:09<00:06, 163.73it/s]
scan: 60%|█████▉ | 1499/2500 [00:09<00:06, 156.19it/s]
scan: 61%|██████ | 1518/2500 [00:09<00:05, 164.04it/s]
scan: 61%|██████▏ | 1535/2500 [00:10<00:05, 163.45it/s]
scan: 62%|██████▏ | 1552/2500 [00:10<00:06, 157.56it/s]
scan: 63%|██████▎ | 1571/2500 [00:10<00:05, 165.04it/s]
scan: 64%|██████▎ | 1588/2500 [00:10<00:05, 161.26it/s]
scan: 64%|██████▍ | 1605/2500 [00:10<00:05, 157.55it/s]
scan: 65%|██████▍ | 1623/2500 [00:10<00:05, 163.10it/s]
scan: 66%|██████▌ | 1640/2500 [00:10<00:05, 158.78it/s]
scan: 66%|██████▌ | 1656/2500 [00:10<00:05, 158.24it/s]
scan: 67%|██████▋ | 1674/2500 [00:10<00:05, 164.29it/s]
scan: 68%|██████▊ | 1691/2500 [00:11<00:05, 160.44it/s]
scan: 68%|██████▊ | 1708/2500 [00:11<00:04, 160.70it/s]
scan: 69%|██████▉ | 1726/2500 [00:11<00:04, 165.18it/s]
scan: 70%|██████▉ | 1743/2500 [00:11<00:04, 158.78it/s]
scan: 70%|███████ | 1759/2500 [00:11<00:04, 159.00it/s]
scan: 71%|███████ | 1777/2500 [00:11<00:04, 162.42it/s]
scan: 72%|███████▏ | 1794/2500 [00:11<00:04, 157.89it/s]
scan: 72%|███████▏ | 1810/2500 [00:11<00:04, 150.45it/s]
scan: 73%|███████▎ | 1828/2500 [00:11<00:04, 156.78it/s]
scan: 74%|███████▍ | 1844/2500 [00:12<00:04, 152.12it/s]
scan: 74%|███████▍ | 1860/2500 [00:12<00:04, 151.07it/s]
scan: 75%|███████▌ | 1878/2500 [00:12<00:03, 157.21it/s]
scan: 76%|███████▌ | 1894/2500 [00:12<00:03, 152.87it/s]
scan: 76%|███████▋ | 1911/2500 [00:12<00:03, 156.04it/s]
scan: 77%|███████▋ | 1929/2500 [00:12<00:03, 160.24it/s]
scan: 78%|███████▊ | 1946/2500 [00:12<00:04, 130.36it/s]
scan: 78%|███████▊ | 1962/2500 [00:12<00:03, 136.46it/s]
scan: 79%|███████▉ | 1980/2500 [00:12<00:03, 145.46it/s]
scan: 80%|███████▉ | 1996/2500 [00:13<00:03, 138.88it/s]
scan: 80%|████████ | 2012/2500 [00:13<00:03, 143.43it/s]
scan: 81%|████████ | 2029/2500 [00:13<00:03, 150.48it/s]
scan: 82%|████████▏ | 2045/2500 [00:13<00:03, 148.47it/s]
scan: 82%|████████▏ | 2061/2500 [00:13<00:02, 149.88it/s]
scan: 83%|████████▎ | 2079/2500 [00:13<00:02, 155.86it/s]
scan: 84%|████████▍ | 2095/2500 [00:13<00:02, 151.85it/s]
scan: 84%|████████▍ | 2112/2500 [00:13<00:02, 155.43it/s]
scan: 85%|████████▌ | 2129/2500 [00:13<00:02, 157.30it/s]
scan: 86%|████████▌ | 2145/2500 [00:14<00:02, 152.11it/s]
scan: 86%|████████▋ | 2161/2500 [00:14<00:02, 154.13it/s]
scan: 87%|████████▋ | 2179/2500 [00:14<00:02, 158.78it/s]
scan: 88%|████████▊ | 2195/2500 [00:14<00:01, 154.49it/s]
scan: 89%|████████▊ | 2213/2500 [00:14<00:01, 159.41it/s]
scan: 89%|████████▉ | 2231/2500 [00:14<00:01, 162.84it/s]
scan: 90%|████████▉ | 2248/2500 [00:14<00:01, 156.12it/s]
scan: 91%|█████████ | 2267/2500 [00:14<00:01, 163.50it/s]
scan: 91%|█████████▏| 2284/2500 [00:14<00:01, 161.46it/s]
scan: 92%|█████████▏| 2301/2500 [00:15<00:01, 156.39it/s]
scan: 93%|█████████▎| 2321/2500 [00:15<00:01, 167.44it/s]
scan: 94%|█████████▎| 2338/2500 [00:15<00:00, 164.43it/s]
scan: 94%|█████████▍| 2355/2500 [00:15<00:00, 161.48it/s]
scan: 95%|█████████▍| 2373/2500 [00:15<00:00, 166.20it/s]
scan: 96%|█████████▌| 2390/2500 [00:15<00:00, 162.43it/s]
scan: 96%|█████████▋| 2407/2500 [00:15<00:00, 159.65it/s]
scan: 97%|█████████▋| 2424/2500 [00:15<00:00, 159.64it/s]
scan: 98%|█████████▊| 2440/2500 [00:15<00:00, 140.33it/s]
scan: 98%|█████████▊| 2455/2500 [00:16<00:00, 141.30it/s]
scan: 99%|█████████▉| 2473/2500 [00:16<00:00, 151.51it/s]
scan: 100%|█████████▉| 2489/2500 [00:16<00:00, 152.14it/s]
scan: 100%|██████████| 2500/2500 [00:16<00:00, 153.42it/s]
