Aladdin active - LF20
Active harmonic cavity case w/ LF20 Aladin lattice:
Fig. 11 (a) & 11 (b) of [1]
[1]: Bosch, R. A., Kleman, K. J., & Bisognano, J. J. (2001). Robinson instabilities with a higher-harmonic cavity. Physical Review Special Topics-Accelerators and Beams, 4(7), 074401.
Imports
import numpy as np
import matplotlib.pyplot as plt
from mbtrack2 import CavityResonator
from aladdin import aladdin
from albums.scan import scan_HC_beta_I0_active
from albums import SystemState
from albums import EquilibriumOptions, TheoryOptions
from albums import DEFAULT_FLOWS
Ring and cavity setup
ring = aladdin(mode="LF20", V_RF=50e3)
MC = CavityResonator(ring, m=1, Rs=0.5e6, Q=8000, QL=8000, detune=100e3)
MC.beta = 11
MC.Vc = 50e3
MC.theta = np.arccos(ring.U0/MC.Vc)
HC = CavityResonator(ring, m=4, Rs=1.24e6, Q=20250, QL=20250, detune=100e3)
Benchmark
points = 50
currents = np.linspace(0, 300e-3, points)
HC_beta_vals = np.linspace(0, 300, points)
method = "Bosch"
flow = DEFAULT_FLOWS[method]
flow_no_coupling = DEFAULT_FLOWS[f"{method}_no_coupling"]
N_sigma = 20
tau_boundary = ring.sigma_0*N_sigma
eq_opts = EquilibriumOptions(tau_boundary=tau_boundary,
passive_harmonic_cavity=False,
auto_set_MC_theta=True,
optimal_tunning=True,
auto_set_for_xi=True,
xi=1)
Active harmonic cavity - Robinson instabilities without coupling

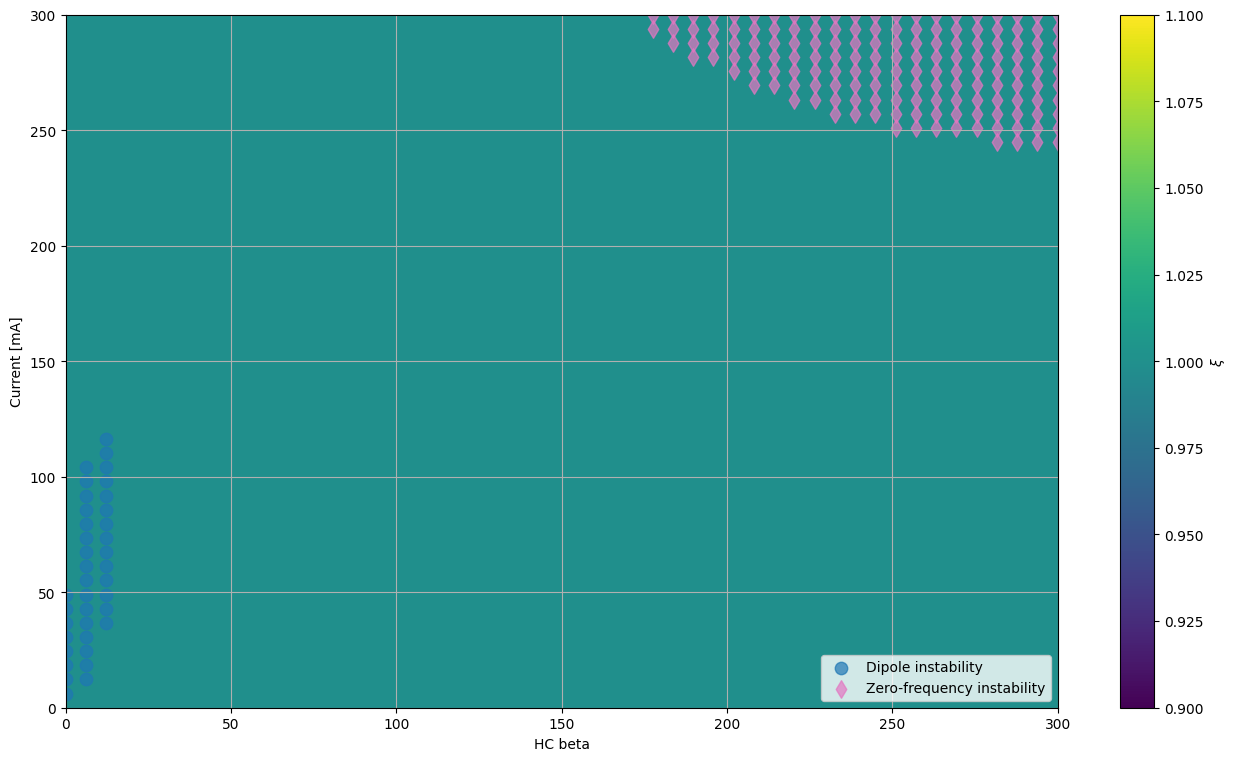

Fig. 11 (a) in [1]
result = scan_HC_beta_I0_active(
SystemState(ring, [MC, HC]),
HC_beta_vals,
currents,
flow=flow_no_coupling,
eq_opts=eq_opts,
theory_opts=TheoryOptions(mode_coupling=False))
result.plot("xi")
scan: 0%| | 0/2500 [00:00<?, ?it/s]
scan: 2%|▏ | 50/2500 [00:00<00:04, 493.08it/s]
scan: 4%|▍ | 102/2500 [00:00<00:04, 504.21it/s]
scan: 6%|▌ | 155/2500 [00:00<00:04, 512.00it/s]
scan: 8%|▊ | 208/2500 [00:00<00:04, 516.09it/s]
scan: 10%|█ | 262/2500 [00:00<00:04, 522.08it/s]
scan: 13%|█▎ | 317/2500 [00:00<00:04, 528.92it/s]
scan: 15%|█▍ | 370/2500 [00:00<00:04, 525.83it/s]
scan: 17%|█▋ | 426/2500 [00:00<00:03, 535.57it/s]
scan: 19%|█▉ | 482/2500 [00:00<00:03, 542.70it/s]
scan: 22%|██▏ | 538/2500 [00:01<00:03, 545.81it/s]
scan: 24%|██▍ | 594/2500 [00:01<00:03, 548.33it/s]
scan: 26%|██▌ | 650/2500 [00:01<00:03, 551.26it/s]
scan: 28%|██▊ | 708/2500 [00:01<00:03, 557.18it/s]
scan: 31%|███ | 764/2500 [00:01<00:03, 557.82it/s]
scan: 33%|███▎ | 821/2500 [00:01<00:02, 559.87it/s]
scan: 35%|███▌ | 879/2500 [00:01<00:02, 563.47it/s]
scan: 37%|███▋ | 936/2500 [00:01<00:02, 560.58it/s]
scan: 40%|███▉ | 994/2500 [00:01<00:02, 563.51it/s]
scan: 42%|████▏ | 1051/2500 [00:01<00:02, 554.05it/s]
scan: 44%|████▍ | 1108/2500 [00:02<00:02, 558.61it/s]
scan: 47%|████▋ | 1166/2500 [00:02<00:02, 562.50it/s]
scan: 49%|████▉ | 1224/2500 [00:02<00:02, 566.71it/s]
scan: 51%|█████ | 1281/2500 [00:02<00:02, 565.00it/s]
scan: 54%|█████▎ | 1339/2500 [00:02<00:02, 566.68it/s]
scan: 56%|█████▌ | 1396/2500 [00:02<00:01, 563.68it/s]
scan: 58%|█████▊ | 1454/2500 [00:02<00:01, 565.84it/s]
scan: 60%|██████ | 1511/2500 [00:02<00:01, 554.91it/s]
scan: 63%|██████▎ | 1567/2500 [00:02<00:01, 537.54it/s]
scan: 65%|██████▍ | 1621/2500 [00:02<00:01, 517.53it/s]
scan: 67%|██████▋ | 1673/2500 [00:03<00:01, 506.60it/s]
scan: 69%|██████▉ | 1724/2500 [00:03<00:01, 495.23it/s]
scan: 71%|███████ | 1774/2500 [00:03<00:01, 480.97it/s]
scan: 73%|███████▎ | 1823/2500 [00:03<00:01, 468.64it/s]
scan: 75%|███████▍ | 1870/2500 [00:03<00:01, 455.46it/s]
scan: 77%|███████▋ | 1916/2500 [00:03<00:01, 446.43it/s]
scan: 78%|███████▊ | 1961/2500 [00:03<00:01, 434.15it/s]
scan: 80%|████████ | 2005/2500 [00:03<00:01, 424.81it/s]
scan: 82%|████████▏ | 2048/2500 [00:03<00:01, 420.88it/s]
scan: 84%|████████▍ | 2095/2500 [00:04<00:00, 425.50it/s]
scan: 86%|████████▌ | 2142/2500 [00:04<00:00, 435.17it/s]
scan: 87%|████████▋ | 2186/2500 [00:04<00:00, 425.39it/s]
scan: 89%|████████▉ | 2229/2500 [00:04<00:00, 412.65it/s]
scan: 91%|█████████ | 2271/2500 [00:04<00:00, 404.20it/s]
scan: 92%|█████████▏| 2312/2500 [00:04<00:00, 396.17it/s]
scan: 94%|█████████▍| 2352/2500 [00:04<00:00, 385.09it/s]
scan: 96%|█████████▌| 2396/2500 [00:04<00:00, 397.96it/s]
scan: 98%|█████████▊| 2442/2500 [00:04<00:00, 410.55it/s]
scan: 99%|█████████▉| 2484/2500 [00:05<00:00, 406.35it/s]
scan: 100%|██████████| 2500/2500 [00:05<00:00, 490.13it/s]
Active harmonic cavity - Robinson instabilities with coupling

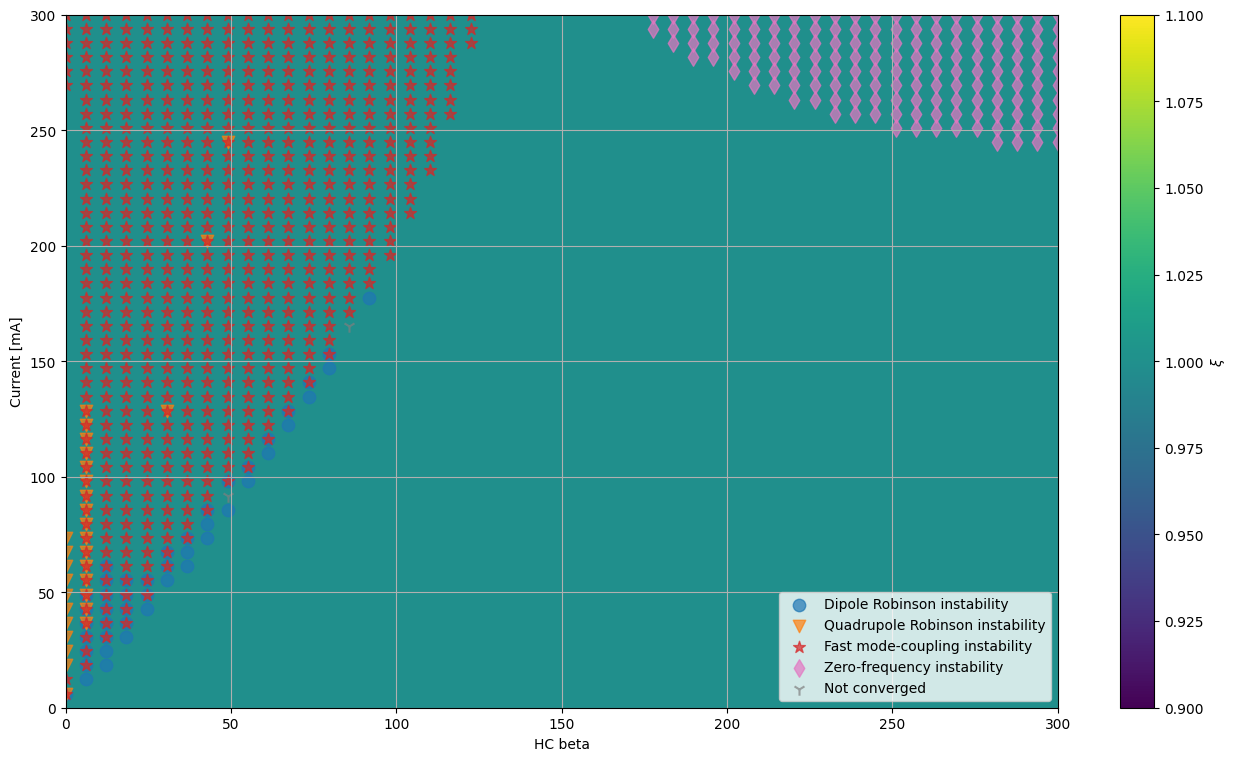

Fig. 11 (b) in [1]
